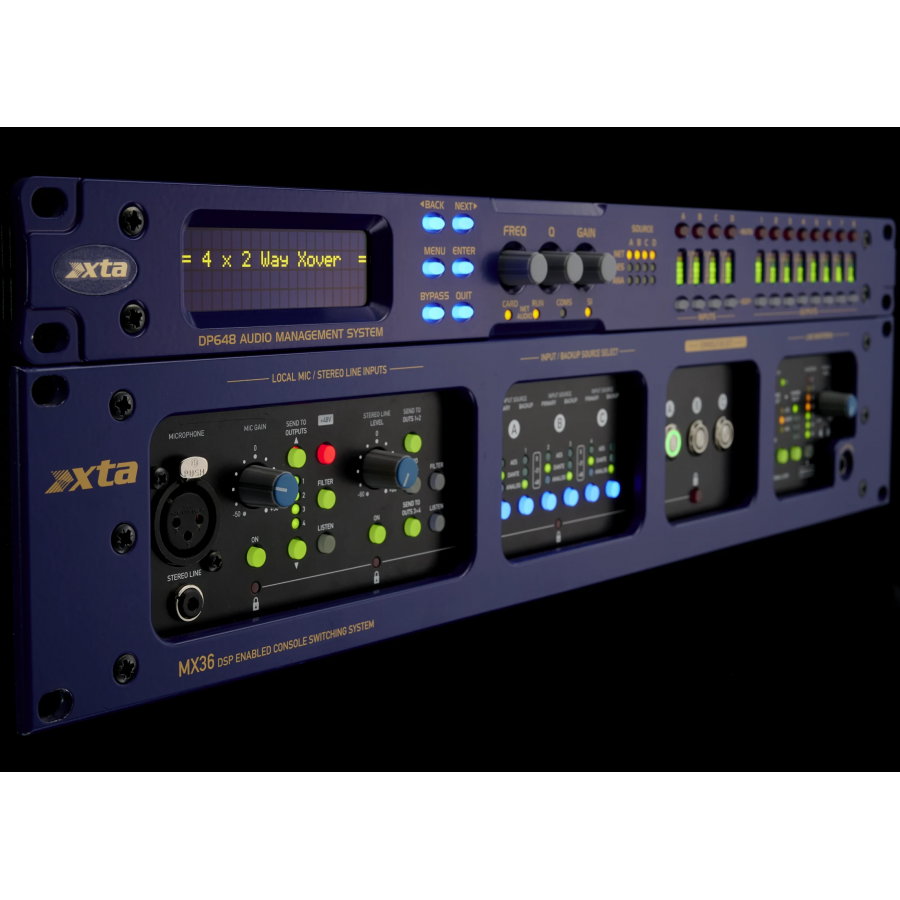

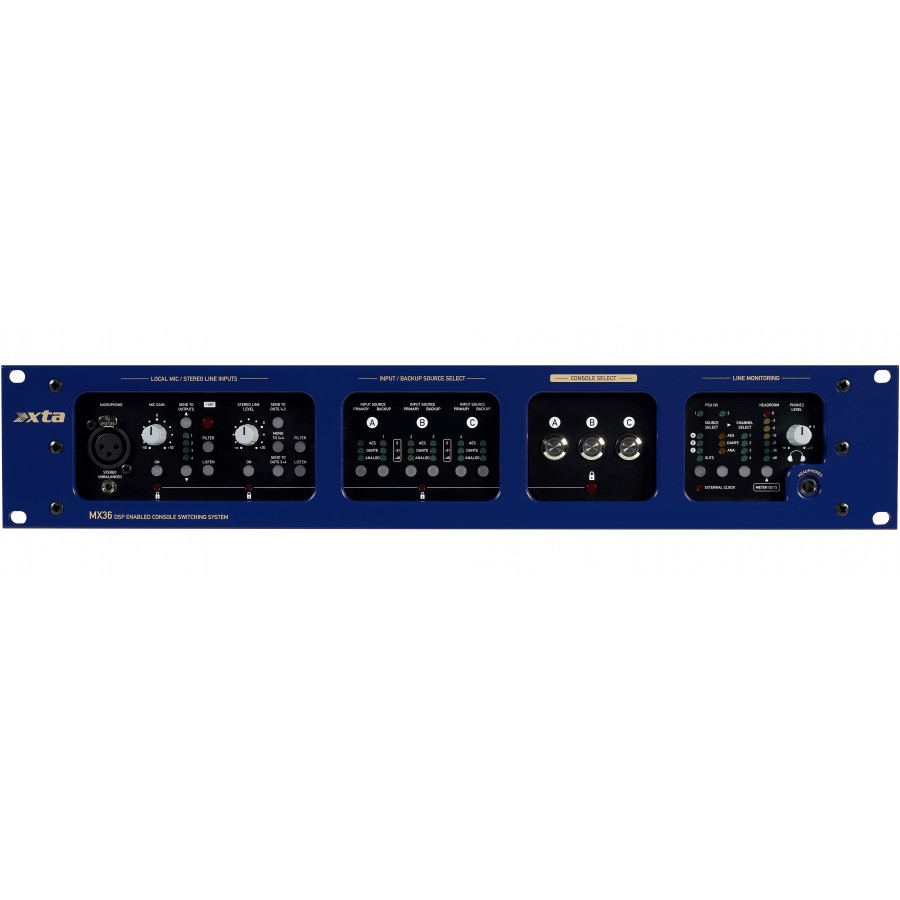

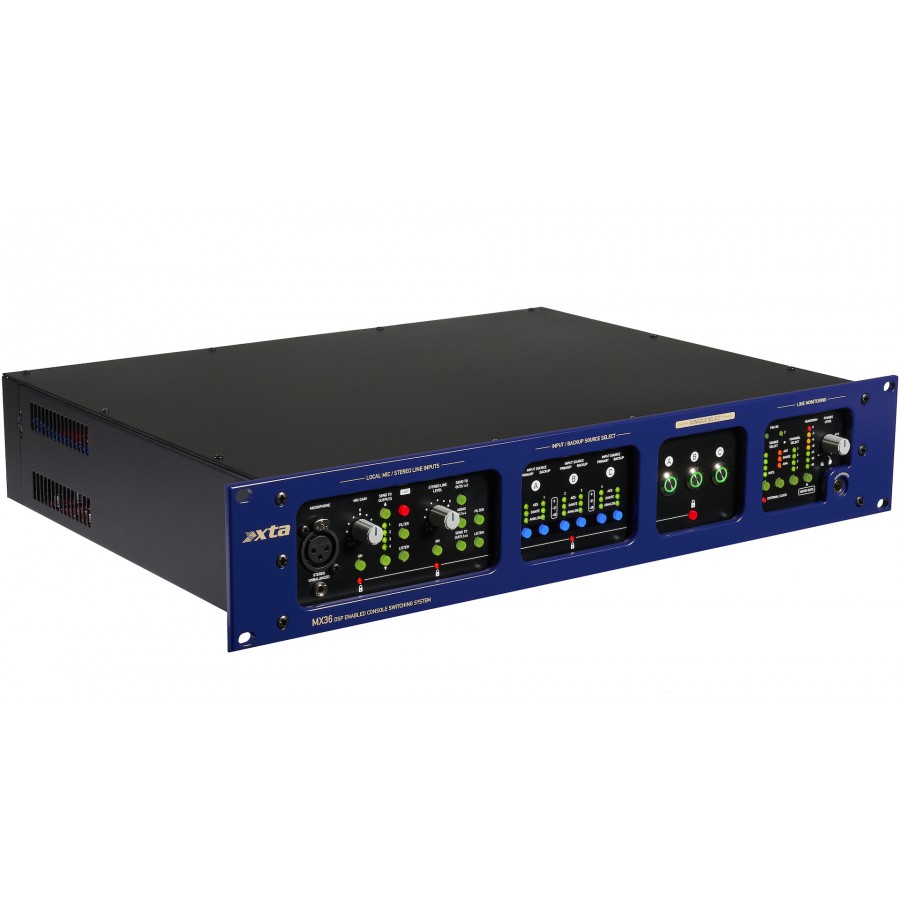

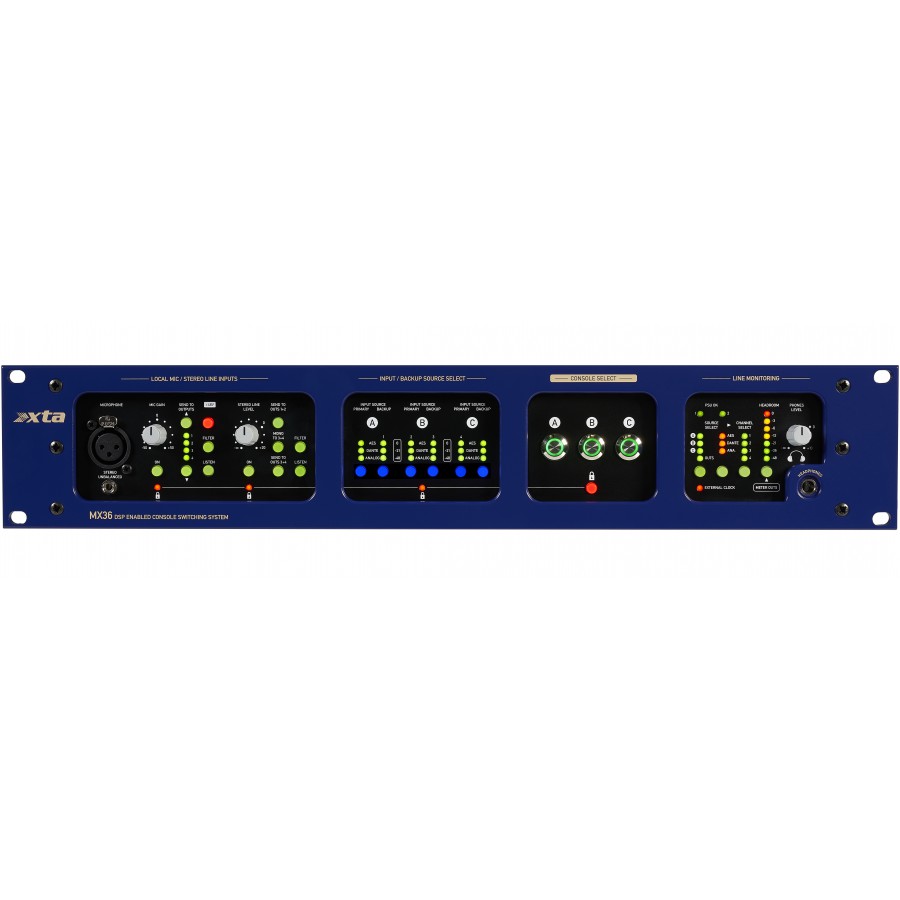

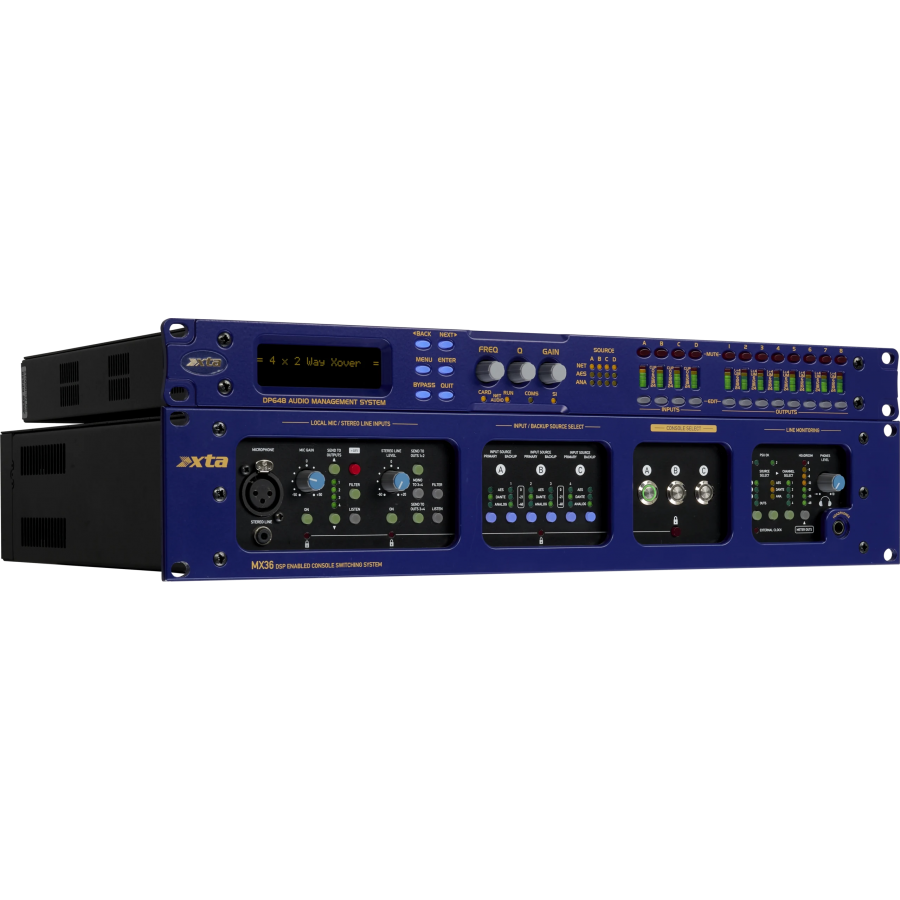

XTA MX36
014200136
A
5 years
Multi-Format, DSP enabled, Console & Audio Switcher.
Designed to offer a uniquely simple solution to the long-standing problem of routing of multiple mixing consoles outputs to a speaker system / processor. Handling 36 inputs in 2U across analogue, AES and Dante networks, these are arranged in sets of four (to typically support Left-Right-Front Fill and Sub feeds from an individual console).
In stock
Specification
| DISPLAY | |
| Napájecí konektor | 3 pin IEC |
| ELEKTRIKA | |
| Napájení | 60 - 240VAC |
| Spotřeba | < 50 W |
| FYZICKÉ HODNOTY | |
| Dimensions ( height x width x depth ) in mm | 88 ( 2U ) x 482 x 312, bez konektorů |
| Weight in kg | 5.1 kg |
| Hmotnost včetně přepravní krabice | 6.3 kg |
| OBECNÉ | |

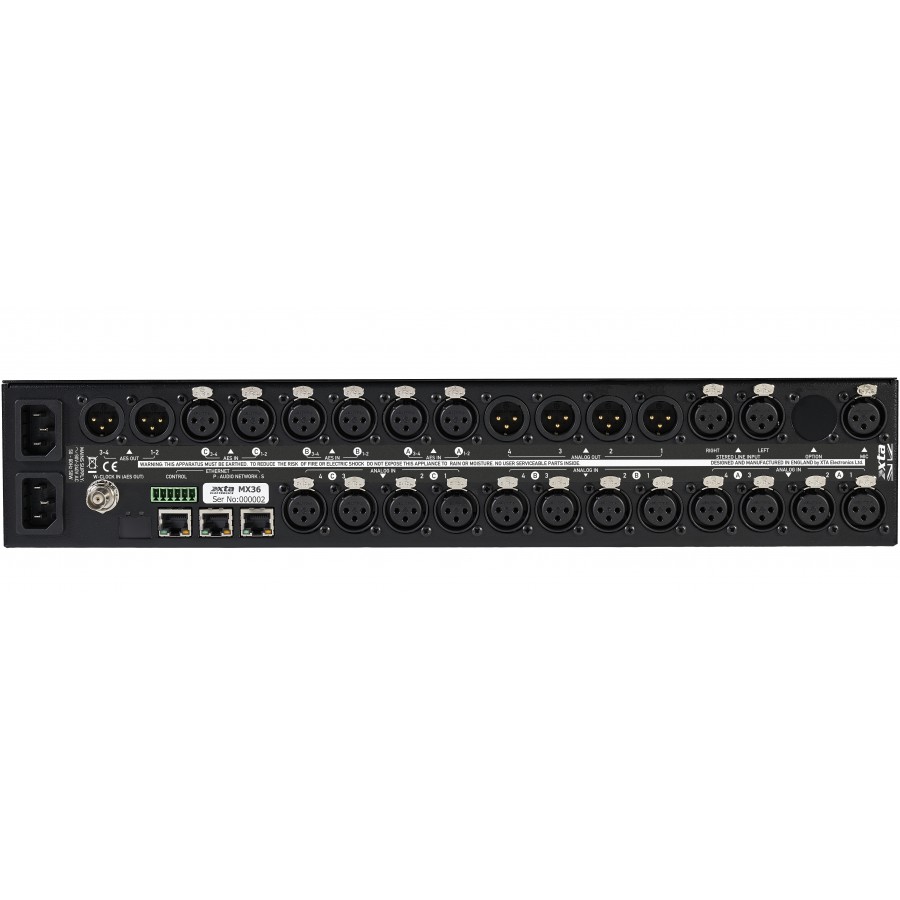

| Analogové výstupy | 4 x balanced XLR, max output +21.5dBu (may be internally scaled to +8dBu or +12dBu for upstream system compatibility) |
| Analogové vstupy | Consoles A/B/C, 3 x 4, 24-bit, 96kHz conversion; max input level +21.5dBu |
| AES Outputs | 2 x 2 , 96kHz (default) internal world clock (48K selectable), or sync to external BNC world clock |
| AES Inputs | 3 x (2+2), with individual pair sample rate conversion |
| DANTE Outputs | 1 x 4, global sample rate set by Dante network (48k/96k) |
| DANTE Inputs | 3 x 4, global sample rate (48k/96k), Background Music (Stereo Line), Stereo unbalanced 3.5mm front panel jack, 2 x rear panel balanced XLR (in parallel), 24-bit, 96kHz conversion; variable gain -INF to +20dB; max input level +21.5dBu, Microphone |
More information
MX36 - features:
- When you need to ensure that the show goes on, no matter what happens, you need backups of backups. You need a way to automatically switch between them if the primary signal path drops out. You need the ability to work with any sample rate on any AES input. To perform this across not just stereo pairs, but four channels simultaneously (L/R/FF/Sub)
- No need for control software, no PC* and no way for this to be tampered with remotely. You don’t want to be trusting this to an inferior sub-mixer or an over-specified, over-complex processor – get the right tool for the job – Do it properly while saving money!
- The MX36 Console Switching System is the solution. It handles four simultaneous inputs across three source types (analogue, AES and Dante – 36 individual inputs) and even when you’re not monitoring a source it will be. It will be checking the signal integrity and will auto-select the highest priority source seamlessly if anything fails

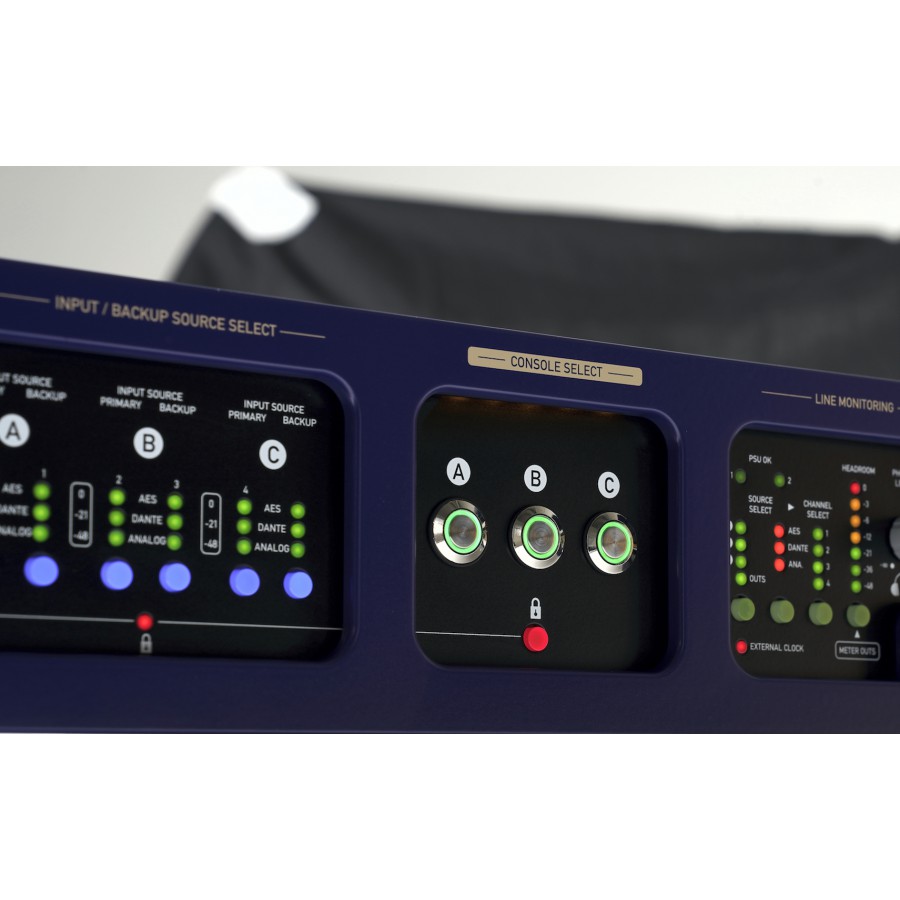

- All you have to do is press A, B or C to choose what’s routed to the four outputs (again all available in analogue, AES and Dante flavours simultaneously, with the option for external sync on the AES outputs)
- Feed in a stereo source direct to the MX for background music and a mic for announcements. Plug in some headphones and monitor every individual feed from any source, plus check what’s on the outputs and even verify your redundancy failovers beforehand
- Once you’re happy, lock it all down and walk away, safe in the knowledge that the MX will keep the music playing, with dual redundant power supplies, and XTA’s 30+ years of DSP knowledge ensuring your audio is treated with white gloves through the best audio conversion
- 5 year warranty – 100% UK designed & Manufactured
- Industry standard & Trusted XTA worldwide – Since 1992
Application
- Theaters
- Stadiums
- Television / TV production
- Professional rental companies
- Concerts
- Shopping malls
- Conferences
- Studios
- Hotels
- Clubs
- Any installation requiring the highest quality and reliability
- Any application requiring remote monitoring, control and monitoring
