> >>XTA DP648-D
New XTA DP648-D View larger

XTA DP648-D

022200107 XTA

A

5 years

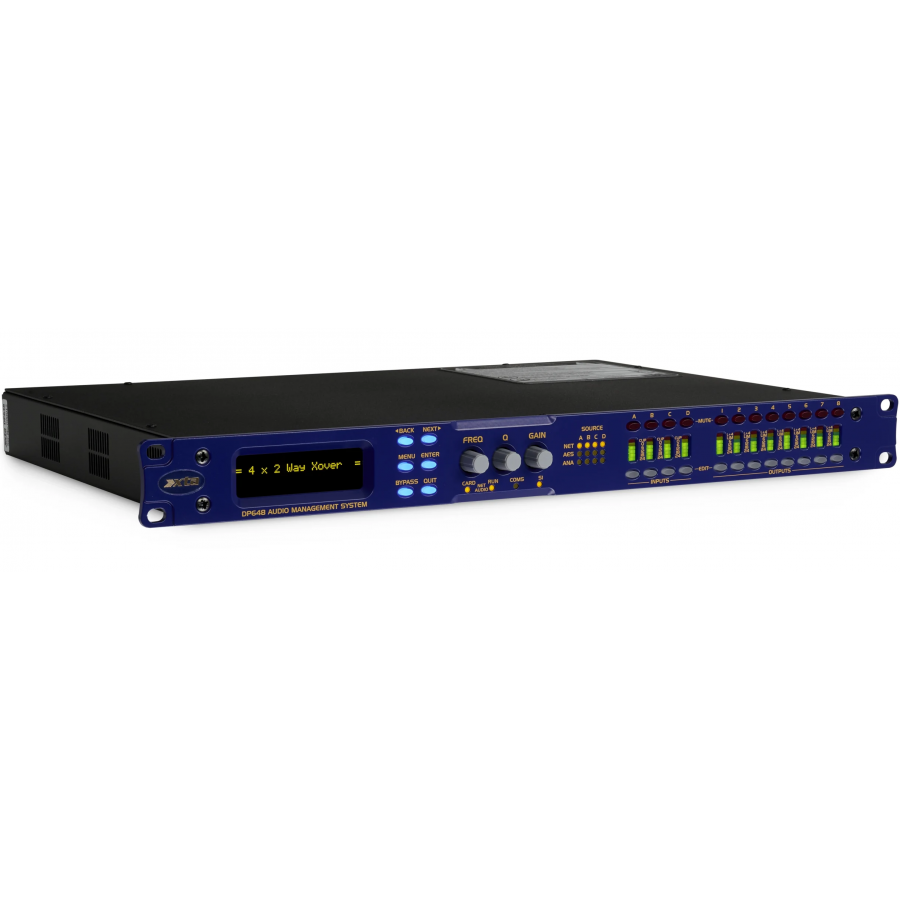

Multi-Format, audiophile grade DSP System Processor, 4 Input, 8 Output + DANTE.

The Six series from XTA combines decades of expertise in digital signal processing and engineering to meet the demands of high-end audio applications.
With a seamless and intuitive workflow, robust construction, and audiophile-grade sound quality, the Six series makes premium performance both accessible and effortless.

More details

In stock

129 990 Kč

Lowest price guarantee!

Have you found a better price? Let us know about it, we will make you a better offer. I want a better price ..

Registration - better price

Discount immediately for registered customers!
If you register, you will get an even better price.
I want to register…

Specification

VSTUPY
Počet vstupů 4 x XLR Electronically balanced Analog Inputs, XLR C & D remote / front panel switchable to AES/EBU
Impedance >10k Ohms
Cmrr >65dB 50Hz - 10kHz
VÝSTUPY
Počet výstupů 8 x electronically balanced analog ouputs, AES/EBU ( XLR 2,4,6,8) remote / front panel switchable
Impedance ( zdroj ) < 600 Ohms
Minimální zatížení 600 Ohms
Maximální úroveň +20dBm into 600 Ohms
Sampling Rate 96kHz internal Up to 192kHz can be accepted and converted
Frekvenční rozsah ±0.5dB 10Hz - 32kHz
Dynamický rozsah >117dB 20Hz -20kHz
Zkreslení < 0.001% @ 1kHz, +10dBm
Maximální zpoždění 650 mS
Minimální velikost kroku 0.325 µs
Výstupní zisk Adjustable +15dB to -40dB in 0.1 dB steps and mute
PARAMETRICKÝ EQUALIZÉR
Počet PEQ 8 na vstup / 9 sekcí na výstup
FILTRY ( HIGH + LOWPASS )
Počet filtrů 9 different filter types including PEQ, Bandpass, All pass, Notch, Vari Q, Shelf and Phase filtering - 2 degree steps on each input and output, 2 x DEQ pre input
LIMITERY
Threshold +22dBu to -10dBu
Attack time 0.3 to 90 milliseconds
Release time 4, 8, 16 or 32 times the attack time
Druhy limiterů Clip/D-max Limiter - Look-ahead attack time, Fast, Medium or Slow release times
DISPLAY

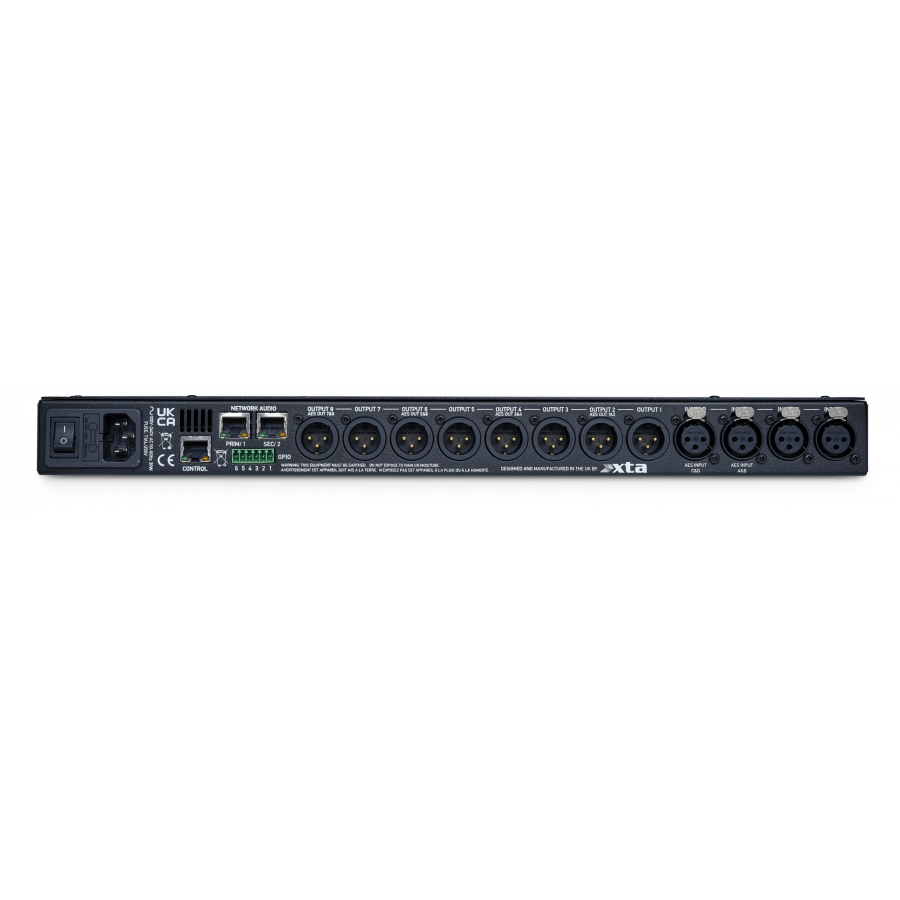

Vstupy 3 pin female XLR
Výstupy 3 pin male XLR
RJ45 1 x Control port for Audiocore Amped Edition, globcon and firmware updates + 2 x Option Dante Card – configurable as primary / redundant or 2 switch ports
Napájecí konektor 3 pin IEC
ELEKTRIKA
Napájení 60 - 240VAC
Spotřeba < 40 W
FYZICKÉ HODNOTY
Dimensions ( height x width x depth ) in mm 44 ( 1U ) x 482 x 305, bez konektorů
Weight in kg 3.5 kg
Hmotnost včetně přepravní krabice 5 kg
OBECNÉ
Digitální výstupy Až 8 AES
Analogové výstupy 8
Digitální vstupy Až 4 AES
Analogové vstupy 4
Latence 0.5 mS

More information

DP648 - features:



  • Six series sets a new standard for audio processors, delivering unparalleled audio excellence
  • Building on XTA’s groundbreaking and iconic DSP legacy, Six introduces a cutting-edge platform that takes innovation to the next level
  • Designed for versatility, it excels in a wide range of applications, from live sound and installations to studio and audiophile environments
  • Equipped with newly designed circuitry, ultra-low noise audiophile components, and state-of-the-art processing algorithms, the Six series delivers the ORIGINAL and BEST of British audio DSP to the world
  • Bringing together the best features of our DP548, the processing platform found in our DPA amplifiers, and a sleek software/management interface via globcon XTA/MC2 edition, we introduce Six
  • Six is designed to cover all your audio needs from every angle
  • 4 Input 8 Output System Processor
  • Analog/ AES/ EBU and Dante/ AES67
  • Automatic Input failover
  • 4 useable inputs across 12 available sources (analogue, AES, Network Audio option)
  • 8 useable outputs across 3 possible formats (analogue, AES, Network Audio option)
  • Flexible Dynamic Processor - FIR Filtering - Extensive Speaker Preset Library
  • The DP648 builds on the legacy of the SIDD, C2, D2 processing, the XTA DP448 and DPA amplifiers
  • Providing ethernet control of this suite of IIR, FIR and dynamic processing essential for sound system management
  • The Dante/ AES67 option and flexible routing make it a comprehensive system processor, for overall system management or for traditional loudspeaker management
  • The DP648 works as a system processor for any audio system, the XTA system scales for more advanced control when partnered with other XTA products. This includes the MX36 console/
    source switcher, DPA and DNA amplifiers which come with or without dsp
  • The DP648 is equally suited to FOH racks as a system processor providing overall system management or located in
    amplifier racks as a more traditional crossover providing stereo 2, 3, 4+ way loudspeaker processing. The extensive XTA
    preset library makes this even easier
  • To deliver this precise control the DP648 has the full suite of classical IIR filters, phase, all pass and delay on both inputs
    and outputs, input dynamic eq and an extensive loudspeaker preset library containing both IIR and FIR setting
  • The DP648 has full front panel control, PC remote software control by Audiocore Amped edition
  • PC & MacOS control using globcon XTA MC² Edition
  • Input DEQ provide Multiband compres /limiting options
  • Full or partial locking of front controls is possible when required
  • Multiple DP648s can be elegantly controlled by fast software grouping, inputs and or outputs can appear in up to 32
    groups, making complex systems easy to manage. Grouping is effectively a virtual 32 output processor across compatible
    amplifiers and processors

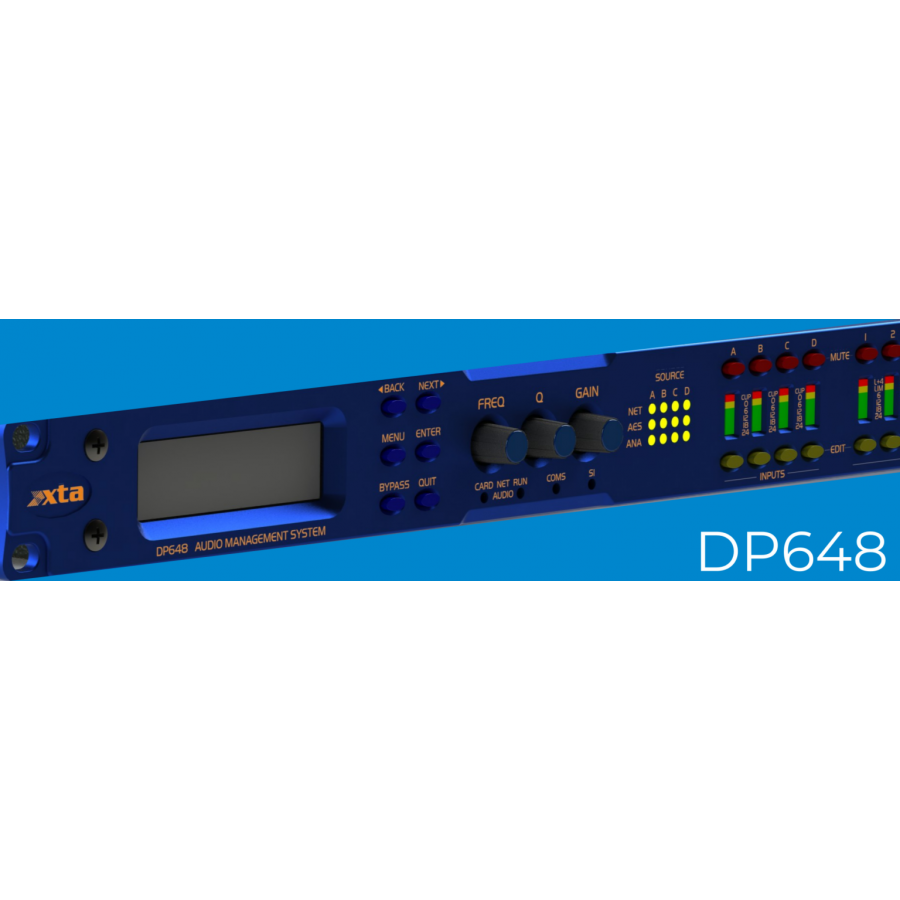

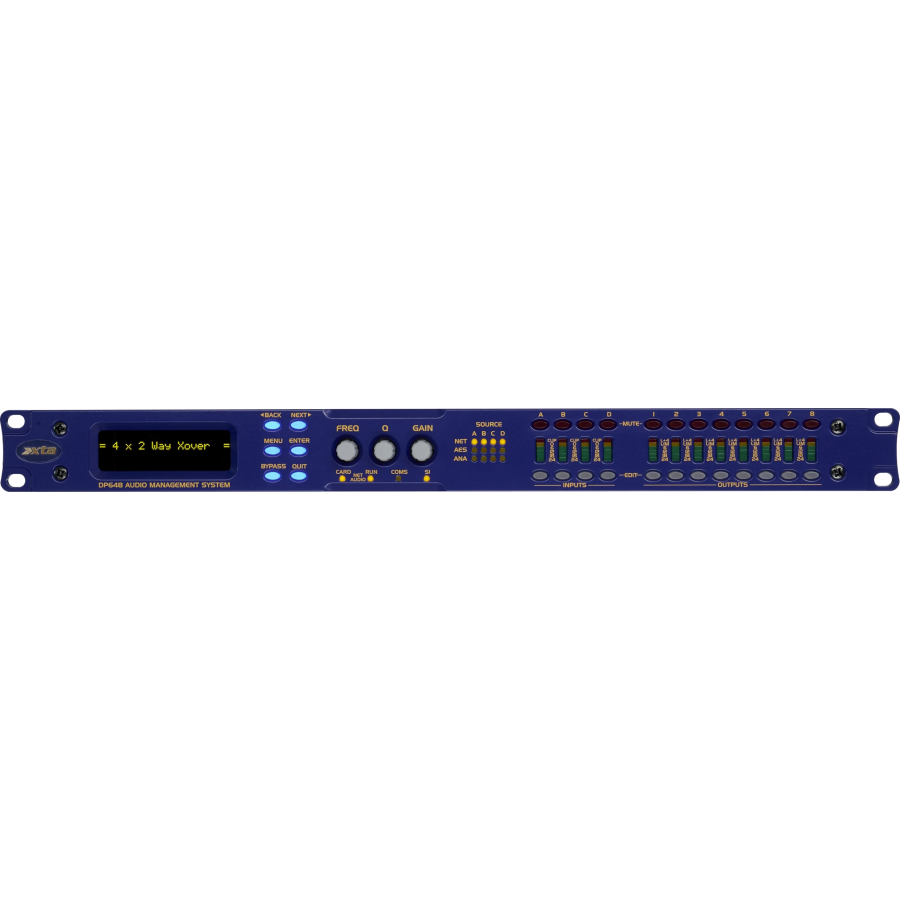

  • Full front panel control of every parameter—always within reach
  • Ethernet control via new globcon software
  • Enhanced visibility with improved metering—an oversized OLED display gives you a comprehensive overview of your mix!
  • 5 year warranty – 100% UK designed & Manufactured
  • New ESS conversion chips have been used that raise the bar in terms of audio signal integrity
  • A bulletproof tried and tested universal (silent) switchmode PSU is utilised for efficiency and reliability
  • Silent (fanless) operation makes Six perfect for studio and audiophile applications, where all you want to hear is the music
  • A subtle but fresh look to match the MX36 but still maintaining that XTA DNA

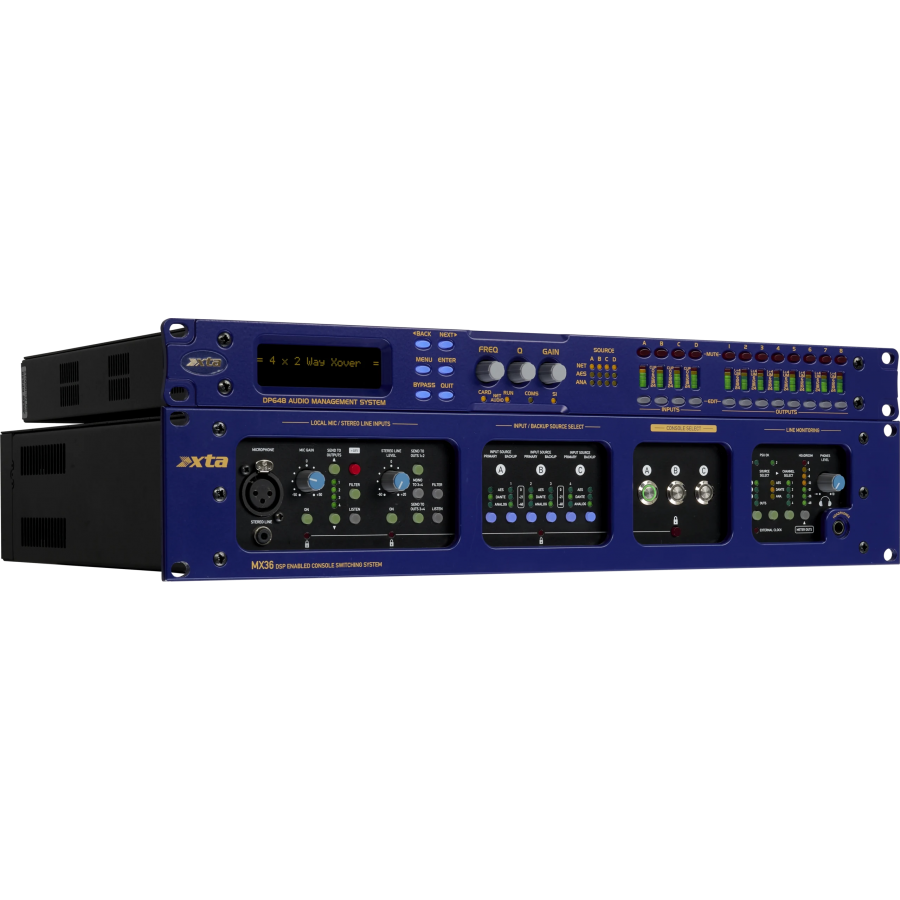

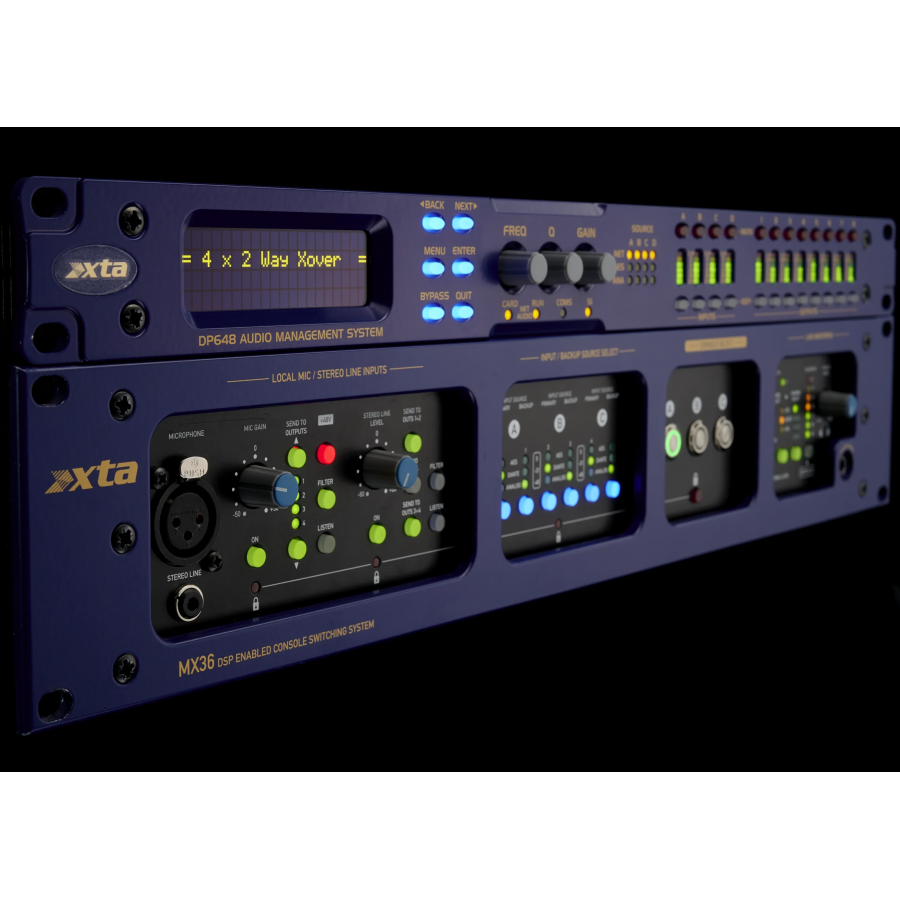

  • Partnering Six processors with the MX36 offers unparalleled control, distribution, and handling of those multiple audio signals across multiple formats, with ultimate care of the signal from input to output, only adding and routing what you choose, and when you choose it.
  • The flexibility and futureproofing that this combination brings to your audio toolkit is truly exceptional
  • Series 6 Comprehensive Audio System Processing
  • Industry standard & Trusted XTA worldwide – Since 1992

Application

  • Theaters
  • Stadiums
  • Television / TV production
  • Professional rental companies
  • Concerts
  • Shopping malls
  • Conferences
  • Studios
  • Hotels
  • Clubs
  • Any installation requiring the highest quality and reliability
  • Any application requiring remote monitoring, control and monitoring
