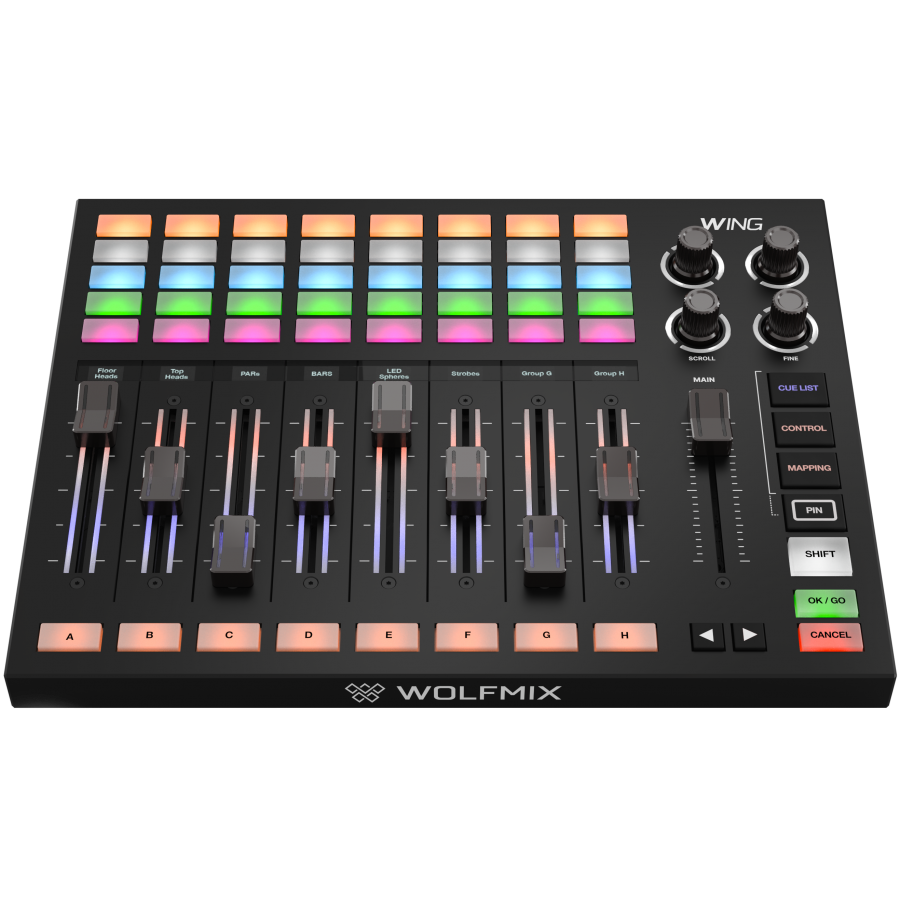

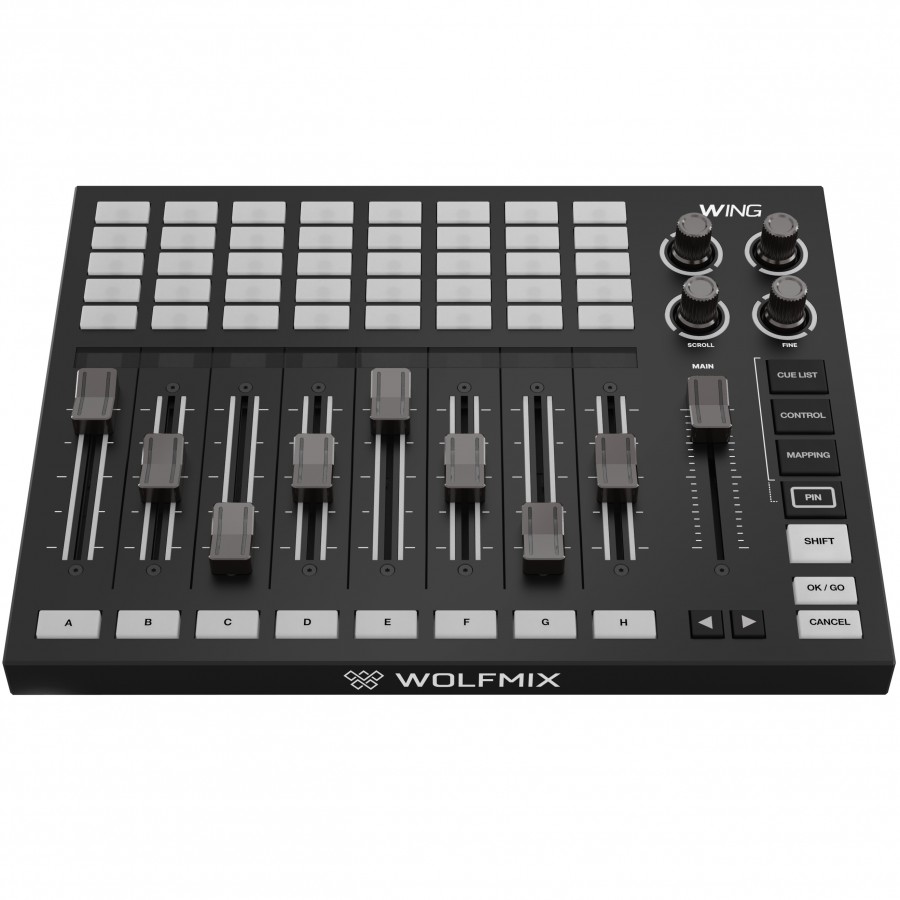

WING is the companion to the small but powerful W1. Designed for the stage.
Split your rig with SUBGROUPS, choreograph your show with CUE LIST, add detail with CONTROL and customise with MAPPING. W1+WING - Two devices, One instrument.
In stock
Warning: Last items in stock!
Availability date:
| Faders | 8 motorised faders with electroplated capacitive touch fader caps, 8 lightguides, 4 RGB LEDs per fader operate in single or dual color modes, Single main fader |
| Display ( s ) | 8 monochrome OLED strip modules, 64 x 32 pixels |
| Encoders | 1 x Detented, 3 x Non-detented, Electroplated caps, Dedicated SCROLL encoder (detented), Dedicated FINE control encoder (non-detented) |

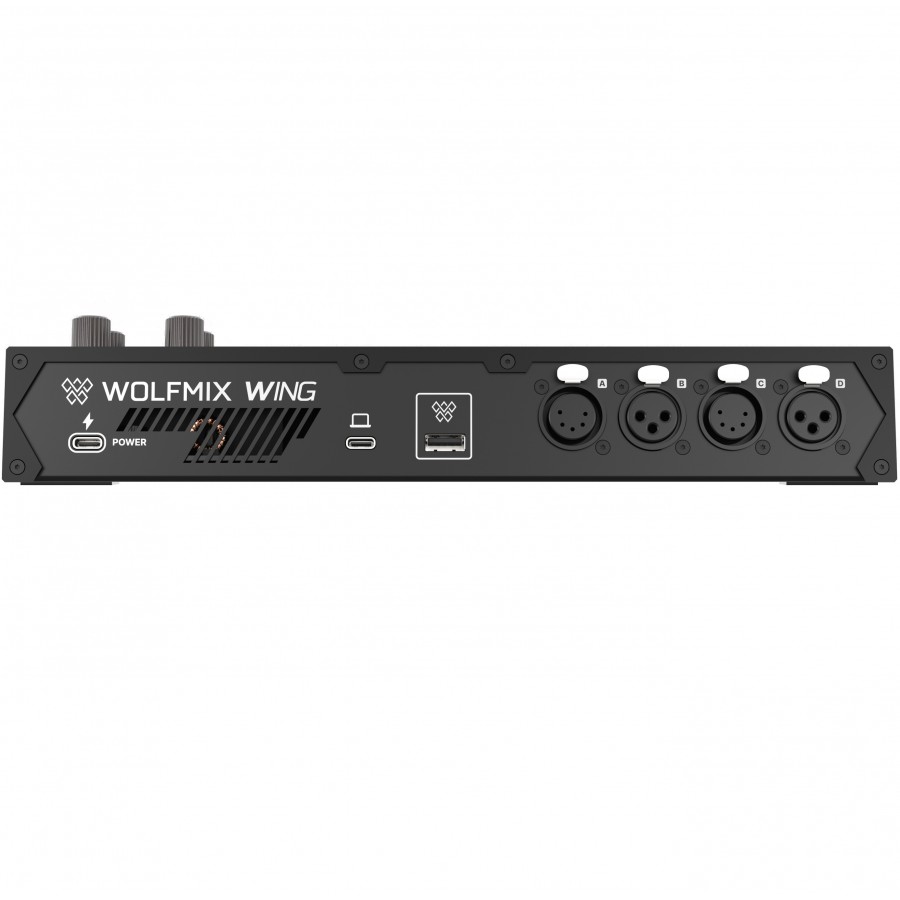

| USB | USB-C Power - 15 V, 3 A, USB-C Data, USB-A - connects and powers the Wolfmix W1 |
| DMX | 2 x 3-pin DMX OUT XLR connectors, 2 x 5-pin DMX OUT XLR connectors, Every port is freely assignable to any of the available universes |
| Housing | ABS Plastic, Powder-coated steel base plate with 100mm VESA (M4 6mm max.) |
| Buttons | 57 RGB LED backlit silicone buttons with matt oil finish, 8 x 5 Matrix, 8 x Group select, 3 x Mode (Cue List, Control, Mapping), 2 x Paging, OK/GO, Cancel, Shift, Pin |
| Processing | 220Mhz CPU with ARM core, 8MB RAM, 16MB Flash, Dedicated second processor driving the motorised fader bank |
| Dimension (width x height x depth) in mm | 290 x 220 x 57 |
| Weight in grams | 1.500 |
