> >>>FANTEK FT5023LS
New FANTEK FT5023LS View larger

FANTEK FT5023LS

FANTEK

A

36 months

Telescopic lifting tower with a load capacity of 235 kg and a lifting height of up to 4.98 meters. Front loading, LoadSense system.

Front load lifting tower with a maximum height of 4.98m. Able to lift up to 235Kg in its normal mode and 455Kg in its structural model. Its Dynamic Overlap system evens the stresses across all the aluminum profiles, improving their resistance and reducing deflexion.

More details

Delivery time 3-4 weeks

72 990 Kč

Lowest price guarantee!

Have you found a better price? Let us know about it, we will make you a better offer. I want a better price ..

Registration - better price

Discount immediately for registered customers!
If you register, you will get an even better price.
I want to register…

Specification

Sekce 4
Materiál Aluminum and steel
Maximální výška 4.98
Minimální výška v metrech ( složené ) 1.71
Minimum carriage height in meters 0.33
Maximální zatížení v kg 235
Max. load (structure mode) in kg 455
Minimální zatížení v kg 25
Base diameter/dimensions in meters (extended) 2.00 x 2.00
Base diameter/dimensions in meters (folded) 0.55 x 0.48
Base diameter in meters Ø 2.65 m ( unfolded )
Distance between front legs in meters 2
Distance between hind legs in meters 1.67

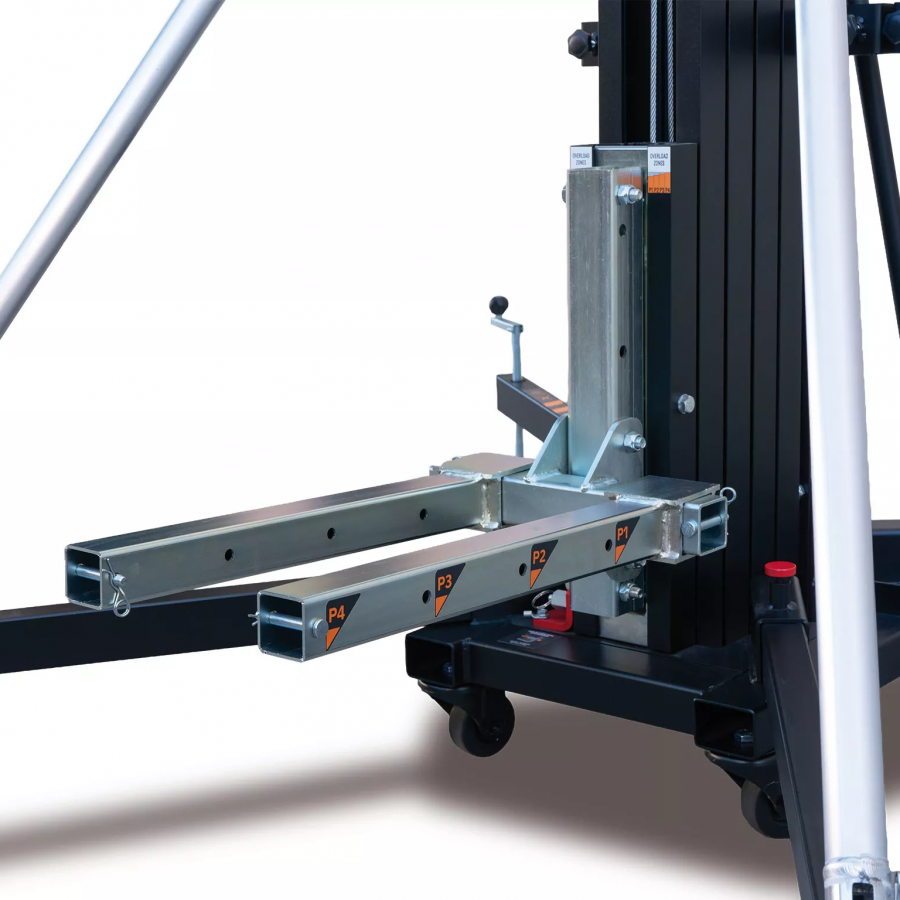

Loading arms in meters 0.48
Maximum fork width in meters 0.265
Compatible accessories FTA130, FTA150, FTA180
Security systems Self locking safety pins
Shipping dimensions in meters 1.71 x 0.55 x 0.48
Weight in kg 106.8
Steel rope Ø 5 mm
Winch in kg 500
Provedení Černé
Certifikace CE Ano
Certifikace DGUV Ano
ORIGIN
Country of manufacture Spain

More information

FT5023 - Highlights:



  • Four-part telescopic ground support
  • Safety bolts to lock the different sections at different heights
  • Its Dynamic Overlap system evens the stresses across all the aluminum profiles, improving their resistance and reducing deflexion.
  • Locking bolts in the base area to lock the booms
  • Booms with adjustable spindle and steel plate with non-slip rubber base
  • Corrosion protection through epoxy coating
  • Water level to ensure a vertical position
  • Earthing connection
  • It features the LoadSense system, which allows monitoring the lifter load in accordance with EN-17206 requirements

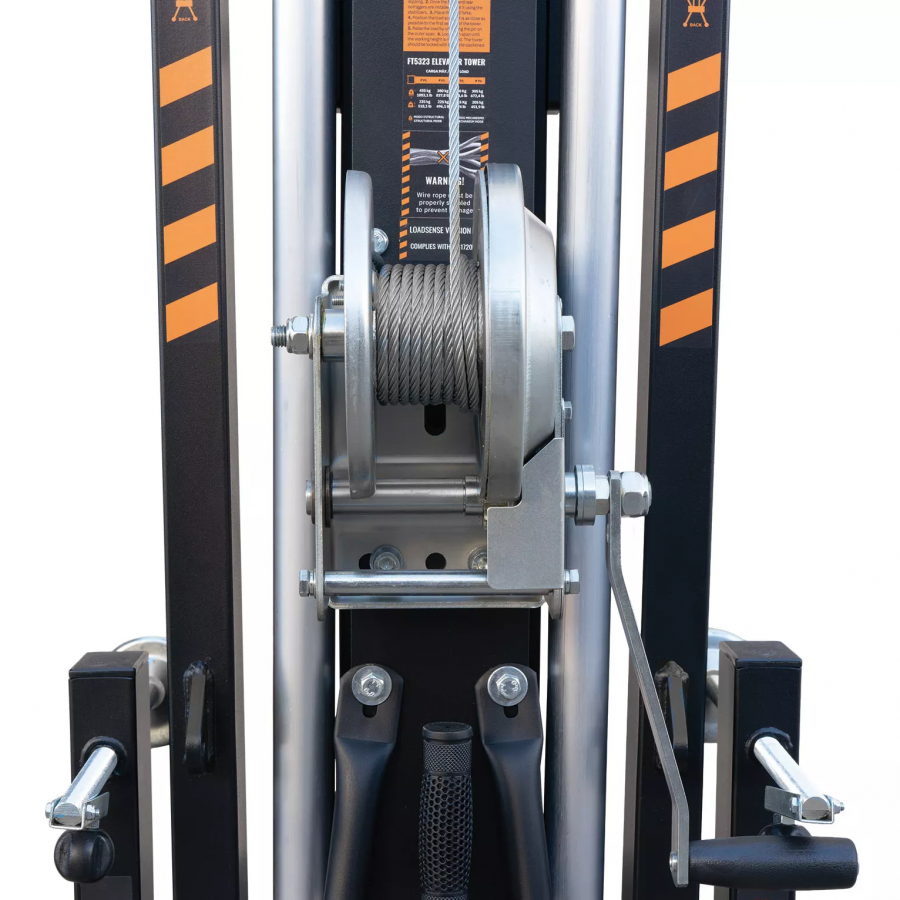

  • AL-KO COMPAC 501 winch: Maximum load 500 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
  • Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
  • Adjustable height
  • Dynamic Overlap
  • Made in Europe
  • With BGV-C1 test certificate

Application

  • Concerts
  • Touring
  • Rental
  • Stage
  • Theaters
  • Slavnostní příležitosti
  • Festive occasions
