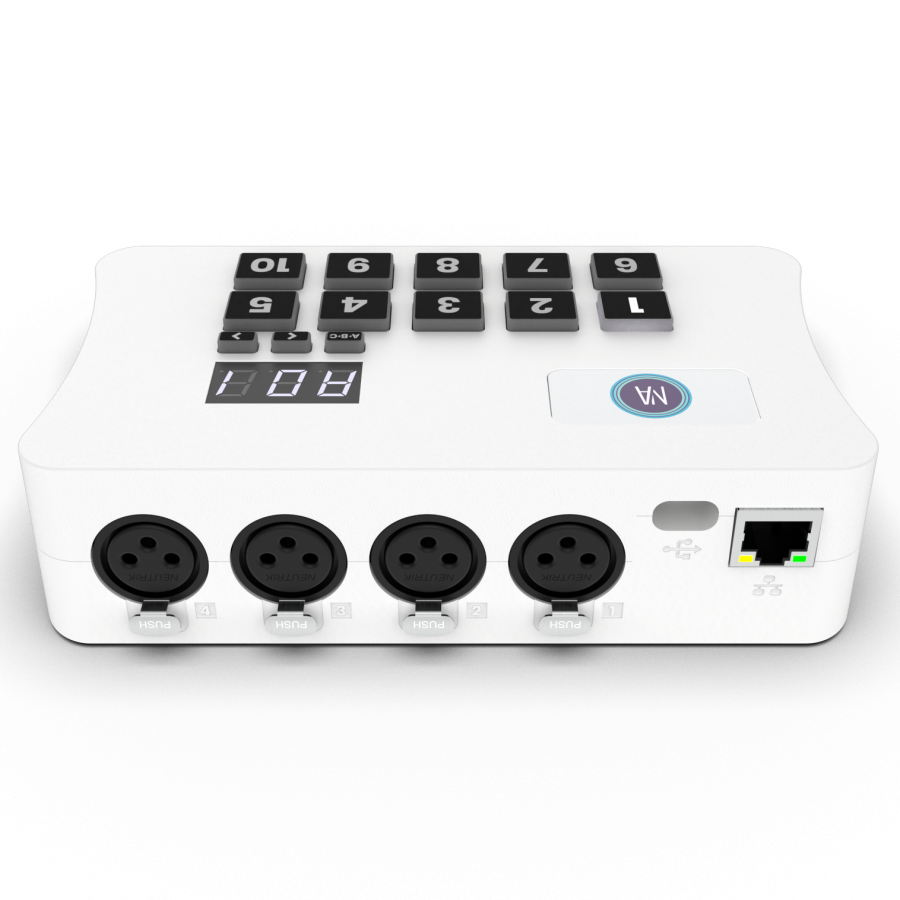

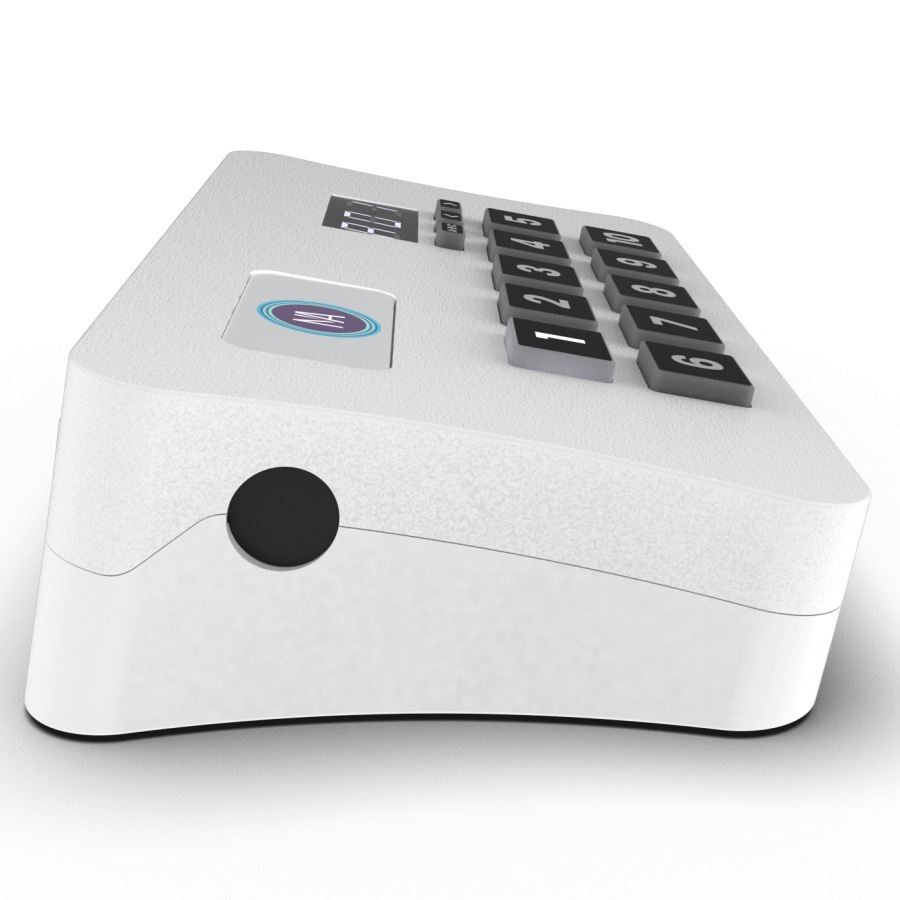

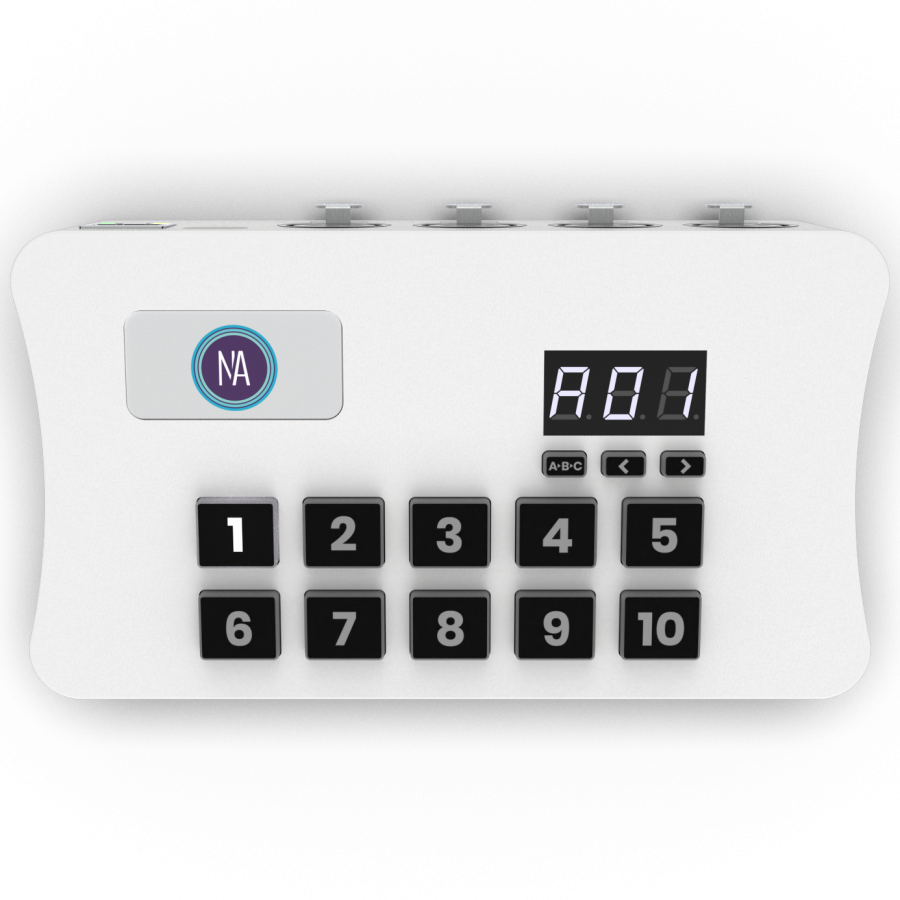

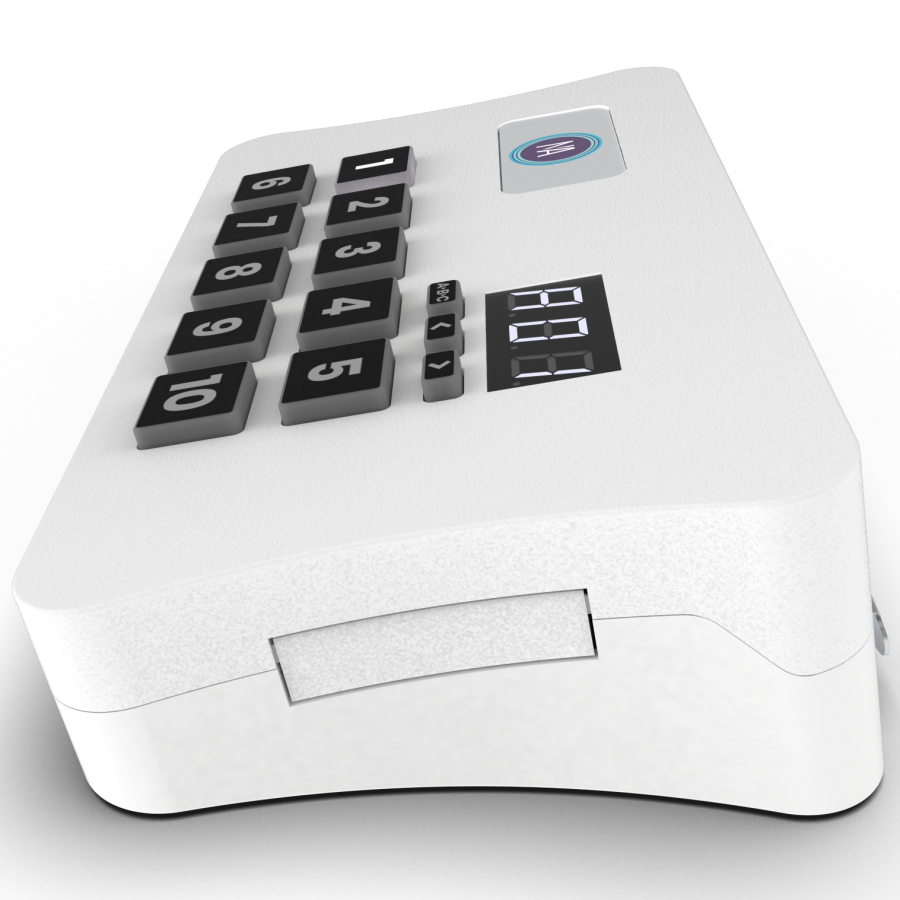

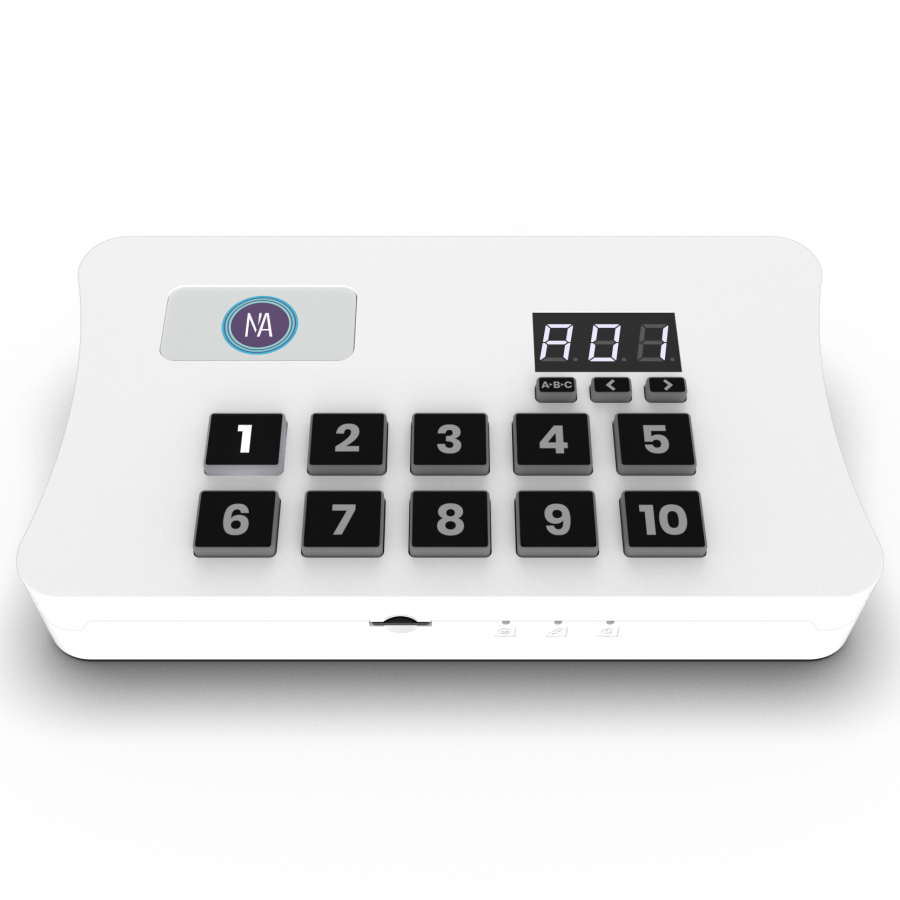

USB-DMX converter for 1024/2048 DMX channels.
USB and Ethernet RJ45 connections, 1024 (upgradable to 2048) DMX standalone channels, micro sdcard memory, backlit keyboard with 13 buttons, 16 dry contact trigger ports, clock & calendar triggering function, stand alone mode with 5 zones and 99 scenes. Programmable with ESAPRO2 (PC/MAC) and ESA2 (PC/MAC) software.
Delivery time 1-2 weeks
Warning: Last items in stock!
Availability date:
| IN GENERAL | |
| USB | type C |
| DMX | YES |
| XLR | 4 x 3-pin |
| Housing | Plastic |
| Buttons | 13 |
| Memory | micro SD |
| LIVE | |
| Live Channels by default (XLR) | 1024 |
| Live Channels max. (XLR) | 2048 |
| DMX IN mode | YES |
| STAND ALONE | |
| SA Channels by default | 1024 |
| SA Channels max. | 2048 |
| SD card memory | YES |
| Zones | 5 |
| Scenes in total | 99 |
| Direct access keys | 10 |
| Ports trigerring | 16 |
| App/Api trigerring | YES |
| Date & Time | Optional |
| POWER SUPPLY AND PHYSICAL VALUES | |
| Power | Power voltage 5-5.5V DC |
| Dimension (width x height x depth) in mm | 160 x 90 x 45 |
| Weight in grams | 268 |
SLESA-U11 - features:
