> >>DATEQ LPM-7.4
DATEQ LPM-7.4 View larger

DATEQ LPM-7.4

DATEQ

A

3 years

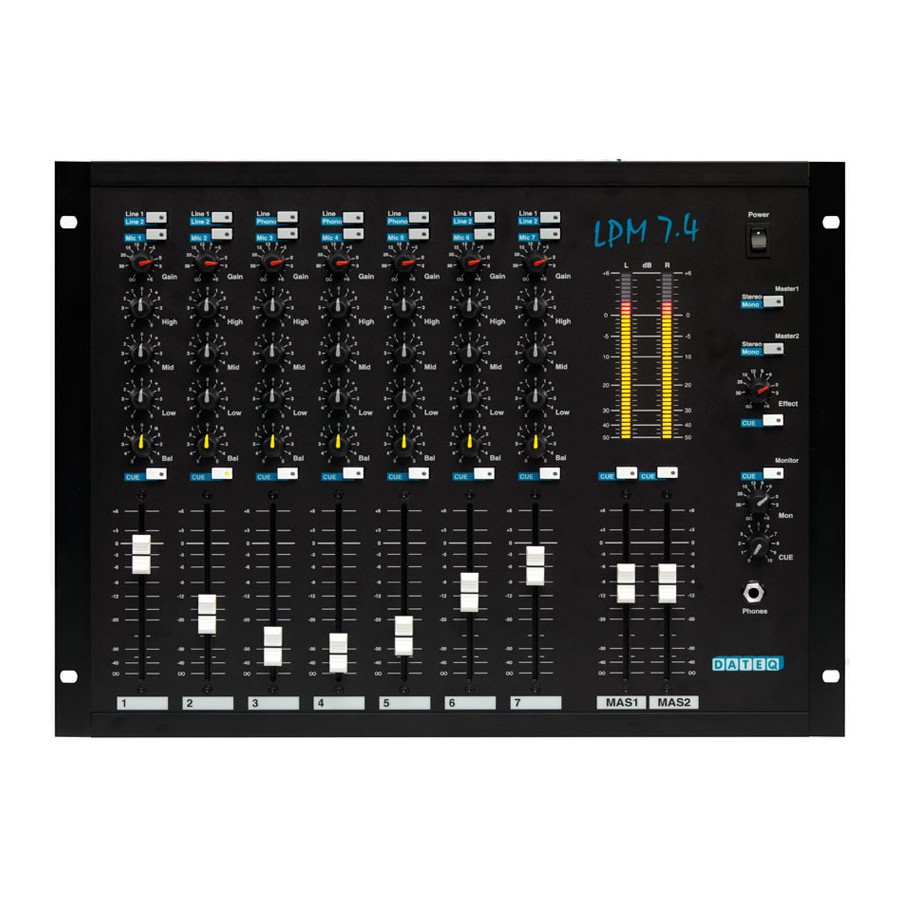

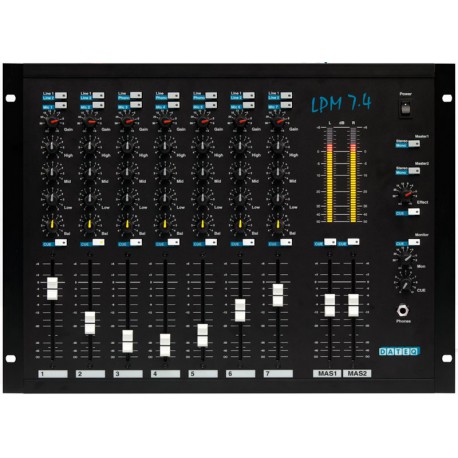

Professional mixing console of the highest quality for use in demanding conditions.

Totally redesigned, the LPM7.4 features 2 Master sections, each with balanced outputs on XLR, so you now have two outputs under control from your mixing console.

More details

Dodací lhůta 2-3 týdny

69 990 Kč

Lowest price guarantee!

Have you found a better price? Let us know about it, we will make you a better offer. I want a better price ..

Registration - better price

Discount immediately for registered customers!
If you register, you will get an even better price.
I want to register…

Specification

Kanály 7 x stereo + 7 x microphone
Vstupy 14 x line ( 2 x cinch ), 7 x mic ( XLR )
Mikrofonní vstupy Dynamic microphone input (7 x XLR)
Linkové vstupy Connection of audio sources at line level (cd/mp3/usb/dvd/md players, PC, mobile phone, etc.), 14 x 2 x cinch
Phono vstupy Connection for turntables (grounding possible with grounding connectors at the back)
Výstupy 2 x master ( 2 x XLR / 2 x cinch ), 2 x monitor ( 2 x 2 x cinch ), 1 x record ( 2 x cinch ), 1 x PFL ( 2 x cinch ), 1 x phones ( jack 6.3 mm ), 1 x send ( 2 x cinch ), 1 x return ( 2 x cinch )
Master ( pravá / levá ) výstup 2 x XLR / 2 x RCA. The electronically balanced XLR outputs guarantee perfect sound quality even when using long cable runs. The same signal is available on the unbalanced RCA connectors
Monitor výstup 2 x 2 x cinch. This output can be used to connect an amplifier (same mix as the main outputs, but has its own volume control). An internal jumper setting allows you to eliminate the microphone signal from the outputs (avoid acoustic feedback)
Nahrávací výstup 2 x RCA. A recorder, such as a PC, can be connected to this output. The recording output has the same signal as the main outputs
Sluchátkový výstup Jack 6.3 mm. Výstup pro sluchátka.
FX Effect insert send 2 x RCA. Connection to the input of an external effects device
FX Effect insert return 2 x RCA. Connection from external effects output device
Ekvalizér na kanál Yes, 3-band + gain
Ekvalizér na mikrofonní kanál Yes, 3-band + gain
Montáž do racku ( 19" ) Yes
Gain Ano
TALK-OVER - ( N/A )
Připojení konektorů Vrchní a zadní strana
Umístění konektoru sluchátek Přední / horní
Umístění konektoru mikrofonu Rear
Typ konektoru sluchátek 6.3 mm JACK
Typ konektoru mikrofonu XLR
Frekvenční rozsah 20Hz – 25kHz @ -3dB
Vstupní šum < -80 dB (IHF-A) / < -107 dB (IHF-A)
Phantomové napájení Yes, 24 Vdc
Zkreslení THD+N 0,007 % nominal
Oddělení kanálů > 76 dB @ 1 kHz
Napájení 230 VAC +/-10% @ 50 Hz
Maximální spotřeba elektrické energie 20 W
Rozměry 448 x 335 x 107
Weight in kg 5.3
Hmotnost včetně balení 6.4

More information

LPM-7.4 - features:



  • Each input channel can process three different audio signals.
  • Pressing the button switches between the microphone or line inputs.
  • When the line inputs are active, a second button can be used to switch between line-1 and line-2
  • Inputs 3, 4 and 5 are equipped with a RIAA correction filter so that turntables can be directly connected to them
  • All this means that a total of 21 audio inputs are available!
  • A feature for a mixer of this quality are the balanced outputs on XLR connectors
  • In addition to these balanced outputs, unbalanced outputs are also available on cinch connectors
  • The large 2×40 segment VU meter is switchable between master and PFL
  • All switches in the master section have LED indicators
  • Each microphone channel has a switchable 48V phantom power supply

Application

  • AV post production
  • Multipurpose audio systems
  • Arenas, stadiums
  • Sports halls
  • All applications that require speech intelligibility and sound dynamics
  • All applications that prefer audio output quality over commercial brands
