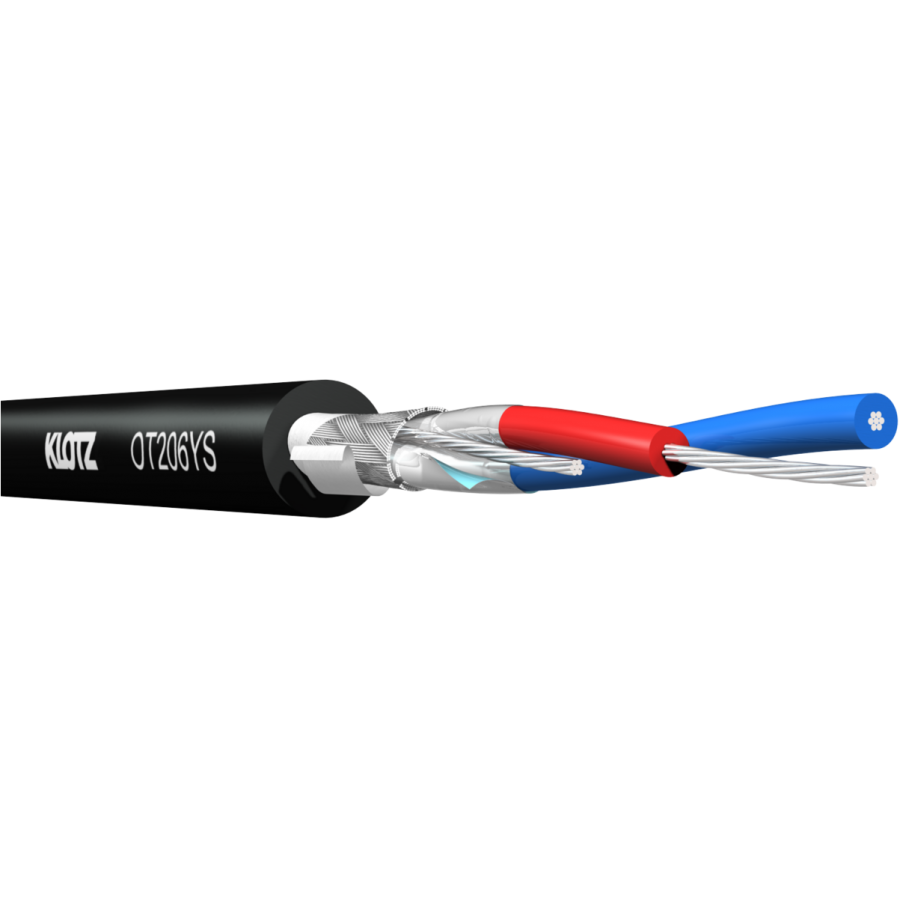

New Reduced price! KLOTZ OT206YS View larger

KLOTZ OT206YS

KLOTZ

A

24 months

OminiTRANS mobile digital AES/EBU cable ( DMX ).

2x 0.22 mm² - PVC, 0.22 mm² conductor cross section (AWG 24), 110 Ohm characteristic impedance, double shielded (AL/PET foil + braid), robust outer jacket, Ø 6.0 mm.

More details

In stock

60 Kč

-23%

78 Kč

Lowest price guarantee!

Have you found a better price? Let us know about it, we will make you a better offer. I want a better price ..

Registration - better price

Discount immediately for registered customers!
If you register, you will get an even better price.
I want to register…

Specification

ZÁKLADNÍ CHARAKTERISTIKA
Délka 100 m / ball
Barva kabelu Černá
Obal PVC, matt
KLASIFIKACE
: OminiTrans
Kategorie Professional digital cable
KABEL
Typ kabelu Digital audio
Stínění AL/PET foil + tinned stranded drain wire + tinned copper braid (coverage 85%)
Plášť PVC
Inner conductor Stranded tinned copper, 7x 0.20 mm (AWG 24/7)
Core insulation Foam-skin PE
Outer conductor 2 cores twisted to a pair
Outer jacket PVC, matt
Min.Bending Radius installed 5x overall diameter / mobile use 10x overall diameter
Working Temperature -25° až +70°C
Test Voltage ( 50 Hz, 1 min. ) 1200 V
Max. Operating Voltage 500 V
Cross Section ( mm2 ) 0.22
Characteristic impedance 110 Ω
Conductor Resistance ( Ω/km ) 85
Capacitance ( pF/m ) 47
Outer Ø ( mm ) 6.0
Colour Black
Weight ( kg/m ) 0.04
Standard Lenghts ( m ) 50 / 100 / 200 / 300 / 500
Max. Lenght ( m ) 500

More information

The sturdy digital 110 ohm cable for the transmission of digital AES/EBU audio signals and digital DMX light control signals. The benefits of this cable are its very low capacitance and attenuation constant as well as extremely dense shielding: the requirements for interference-free connection over long distances. The saphire blue colour permits fast signal identification in confusing cable bundles.
