> >>>KLOTZ OT2000
New Reduced price! KLOTZ OT2000 View larger

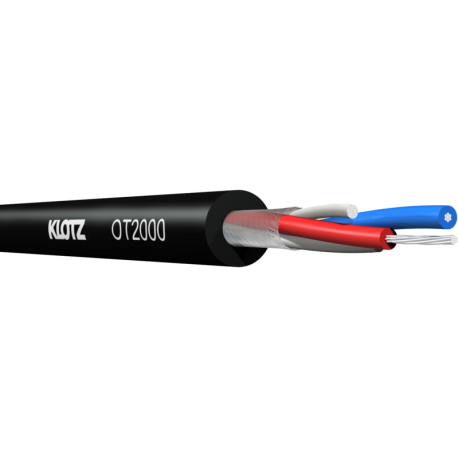

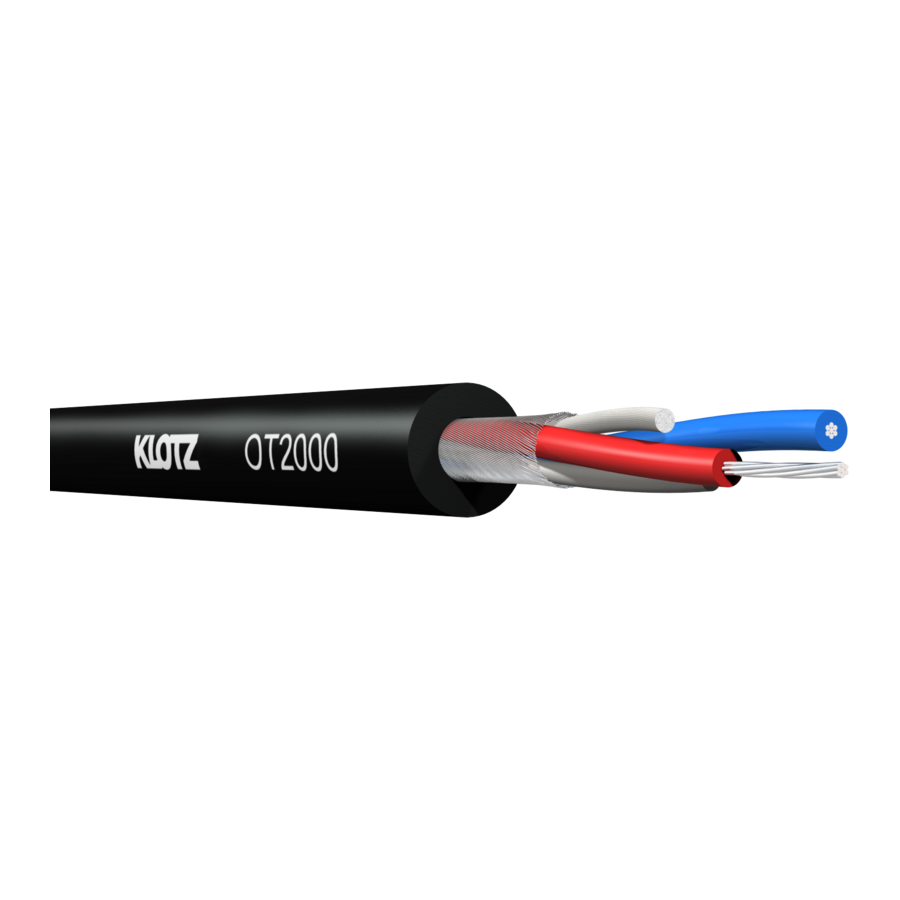

KLOTZ OT2000

KLOTZ

A

24 months

OminiTRANS mobile digital AES/EBU cable.

2x 0.22 mm² - PVC, 0.22 mm² conductor cross section (AWG 24), 110 Ohm characteristic impedance, very dense copper spiral shield, flexible, robust outer jacket, Ø 6.5 mm.

More details

In stock

56 Kč

-19%

69 Kč

Lowest price guarantee!

Have you found a better price? Let us know about it, we will make you a better offer. I want a better price ..

Registration - better price

Discount immediately for registered customers!
If you register, you will get an even better price.
I want to register…

Specification

ZÁKLADNÍ CHARAKTERISTIKA
Délka 100 m / ball
Barva kabelu Černá
Obal PVC, matt
KLASIFIKACE
: OminiTrans
Kategorie Professional digital cable
KABEL
Typ kabelu Digital audio
Stínění Tinned copper spiral shield, 95% coverage
Plášť PVC
Inner conductor Stranded tinned copper, 7x 0.20 mm (AWG 24/7)
Core insulation Foam-skin PE
Outer conductor 2 cores twisted to a pair
Outer jacket PVC, matt
Min.Bending Radius installed 5x overall diameter / mobile use 10x overall diameter
Working Temperature -30° až +70°C
Test Voltage ( 50 Hz, 1 min. ) 1200 V
Max. Operating Voltage 500 V
Cross Section ( mm2 ) 0.22
Characteristic impedance 110 Ω
Conductor Resistance ( Ω/km ) 85
Capacitance ( pF/m ) 50
Outer Ø ( mm ) 6.5
Colour Black
Weight ( kg/m ) 0.05
Standard Lenghts ( m ) 50 / 100 / 200 / 300 / 500
Max. Lenght ( m ) 500

More information

The usage of cables in theatres and on stages often requires contradictory specifications to the lines used. Flexibility and at the same time robustness in relation to extremely high mechanical
stress are needed. These are realised with the OT2000 by cotton filling threads in the interstices, which provide for a stable pair twisting, needed for repeated winding and unwinding, a very
close spiral screen and a very thick outer jacket from soft PVC rounds off the cables characteristics.
