> >>NOVASTAR MCTRL300
New NOVASTAR MCTRL300 View larger

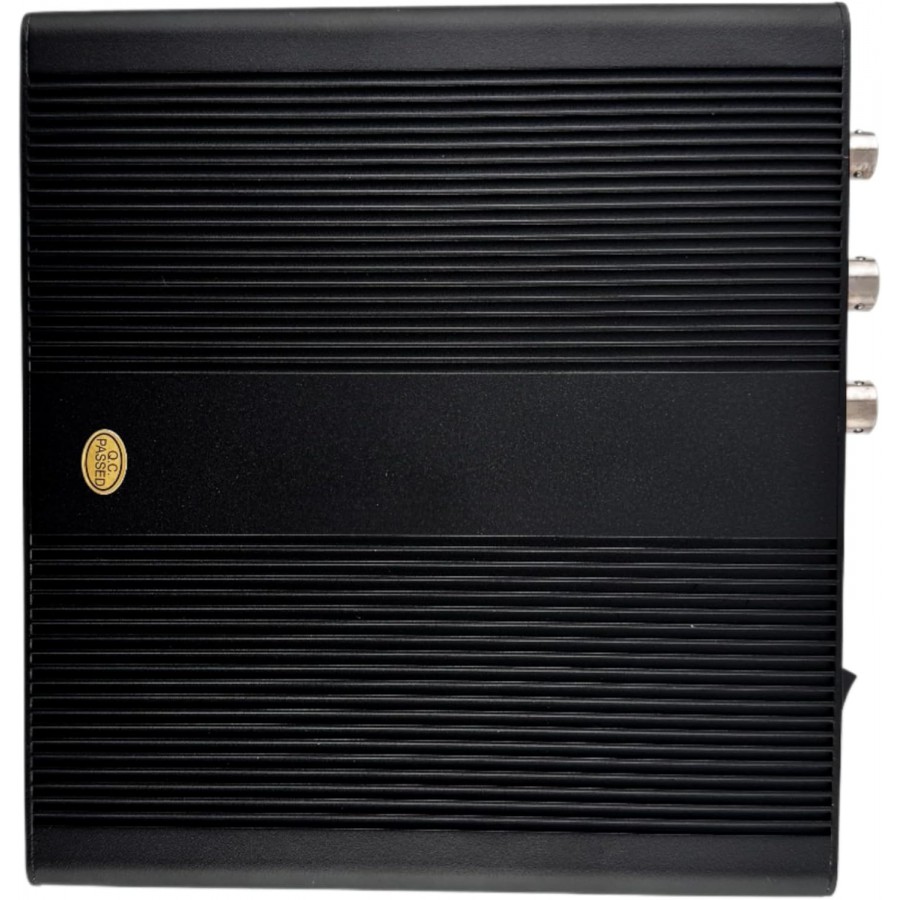

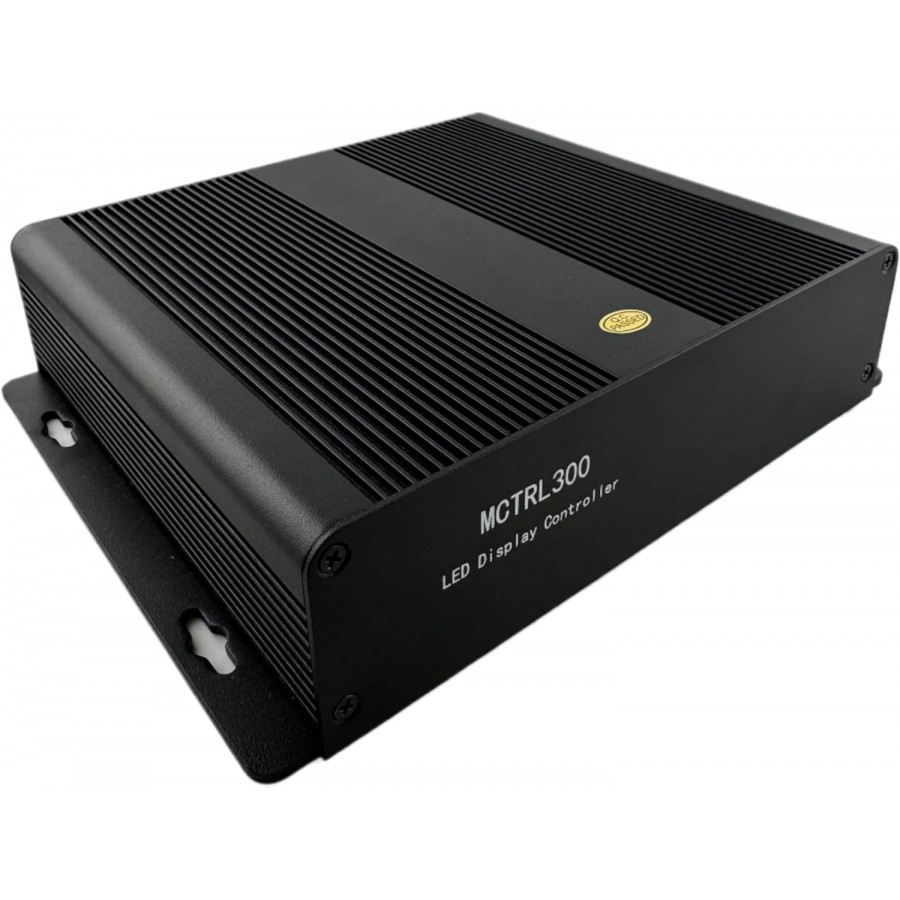

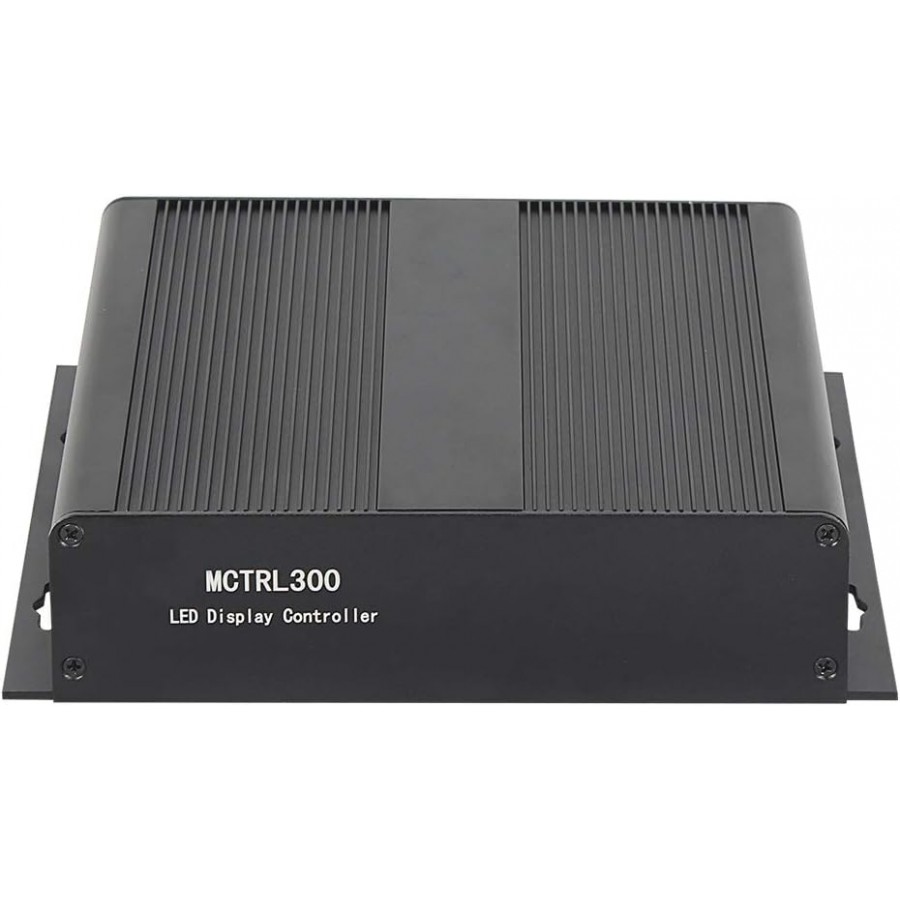

NOVASTAR MCTRL300

NOVASTAR

A

24 months

Sophisticated LED display controller.

Designed with precision, this controller effortlessly supports 1x DVI input, 1x audio input, and delivers stunning output through 2x Ethernet ports. With a resolution support of up to 1920×1200@60Hz, the MCTRL300 guarantees sharp and vibrant visuals for a wide array of applications.

More details

In stock

6 690 Kč

Lowest price guarantee!

Have you found a better price? Let us know about it, we will make you a better offer. I want a better price ..

Registration - better price

Discount immediately for registered customers!
If you register, you will get an even better price.
I want to register…

Specification

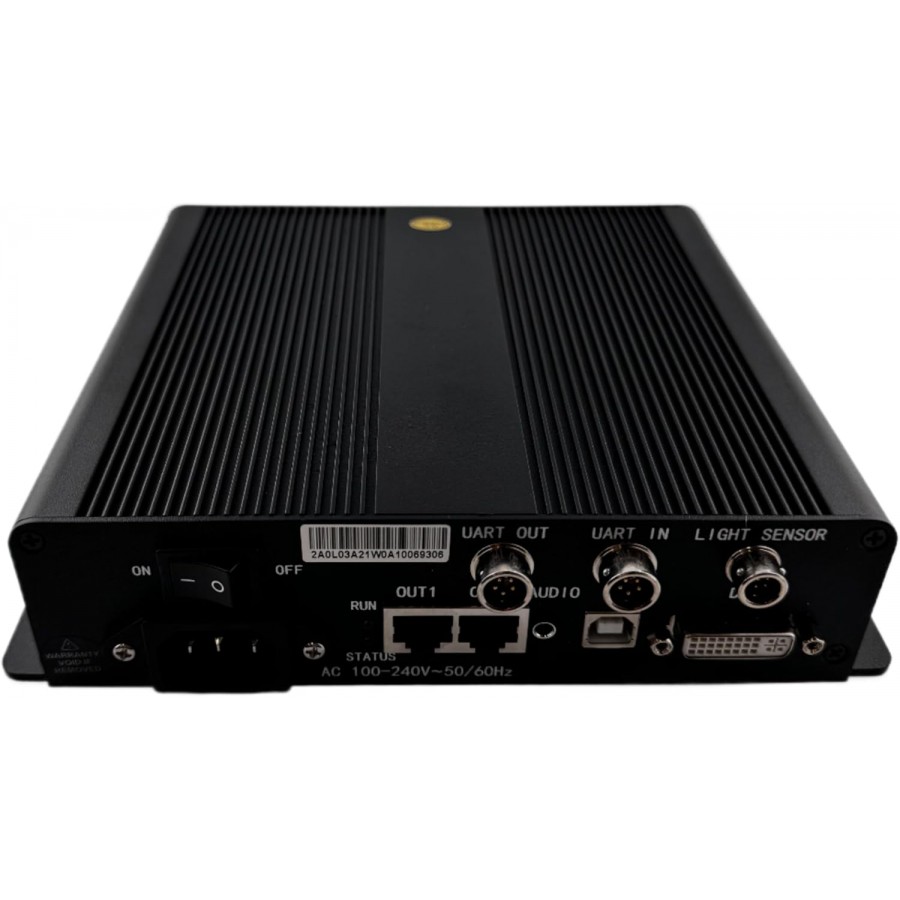

CONNECTORS / CONNECTIONS
Inputs 1. DVI IN ( Single-link DVI connector, Resolution up to 1920x1200@60Hz and downward compatible, Custom resolutions supported, Resolution with maximum width: 3840×600@60Hz and with maximum height: 800x2560@60Hz ) 2. AUDIO ( Audio input connector )
Outputs RJ45 × 2 ( 2 Gigabit Ethernet outputs, Maximum loading capacity of a single Ethernet port: 650.000 pixels, Support redundancy between Ethernet ports )
Function Light sensor ( Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment )
Control 1. UART IN/OUT ( Input and output ports for cascading devices ) 2. USB ( Type-B USB control port for connecting to PC )
Power AC 100V-240V~50/60Hz
RUN Device operating indicator / Working status: 1. Flashing slowly - Video input unavailable, 2. Flashing normally - Video input available, 3. Flashing rapidly - The screen is displaying startup image, 4. Breathing - Ethernet port redundancy has taken effect
STATUS Device power indicator / Working status: 1) On - The power supply is normal, 2. Off - The power is not supplied, or the power supply is abnormal
TECHNICAL PARAMETERS
Loading Capacity (pixel) 1.300.000
Video Source Depth 8bit
Maximum Input Max Width: 3840x600@60Hz, Max Height: 548x3840@60Hz, Min: 800x600@60Hz
Video Input 1x DVI
Audio Input 1x 3.5mm Audio, Port
Control Method 1x USB
Output 2x Network Port
Light Sensor 1x Light Sensor, Port
LCD Control Panel No
LAN Debugging No
Hardware Brightness & Color Adjustment No
Low Latency No
3D No
Free Rotation No
Mirror Image No
GENLOCK No
HDR No
Optical Fiber Port No
Sync Splice Mode No
Control Software NovaLCT
ELECTRICAL PARAMETERS
Input voltage AC 100V-240V~50/60Hz
Rated power consumption 3 W
OPERATING ENVIRONMENT
Temperature -20°C to +60°C
Humidity 10% RH to 90% RH, non-condensing
PHYSICAL PARAMETERS
Dimensions in mm 204 x 160 x 48
Net weight in kg 1.04
PACKING INFORMATION
Cardboard box in mm 280 x 217 x 119
Accessories 1x Power cord, 1x Cascading cable (1 meter), 1x USB cable, 1x DVI cable
CERTIFICATION
Certificates FCC, CE, RoHS, EAC, IC, PFOS

More information

Application Scenarios

The MCTRL300 is the epitome of versatility, making it ideal for both rental and fixed installation applications. Whether it's a dynamic live event, a vigilant security monitoring center, or a vibrant sports arena, the MCTRL300 delivers unparalleled performance.



Advanced Video and Audio Support

As part of the M3 series independent controllers, the MCTRL300 ensures seamless integration of video and audio inputs. With robust decoding and data processing capabilities, this controller transforms your content into captivating visual displays and immersive audio experiences. Enjoy resolutions of up to 2048×668@60Hz, pushing the boundaries of what LED displays can achieve.



User-Friendly Communication

Interact effortlessly with the MCTRL300 through its USB port, providing a convenient and user-friendly interface with your computer. Whether you're managing live events, monitoring security feeds, or enhancing sports center displays, the MCTRL300 simplifies your control experience.

Application

  • Sports venues, arenas
  • Rentals
  • Conference centers
  • Concerts
  • Studios
  • Shopping centers, stores
