A
36 months

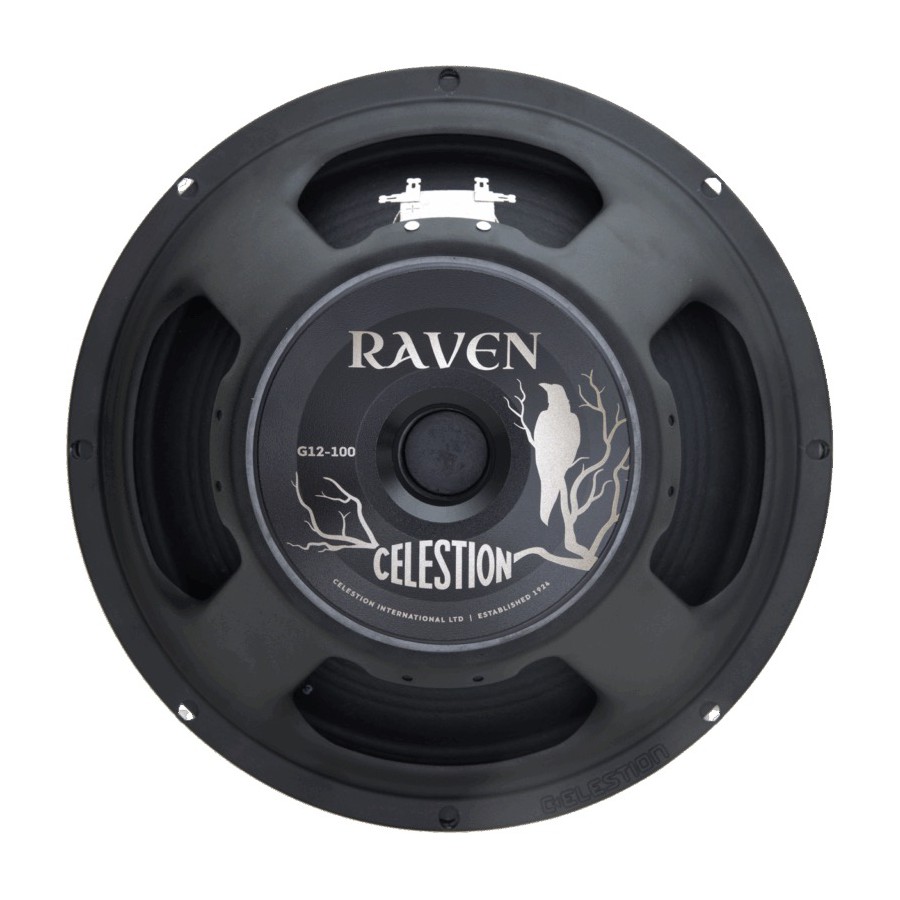

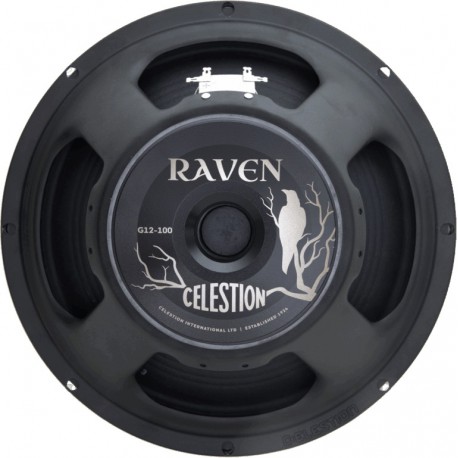

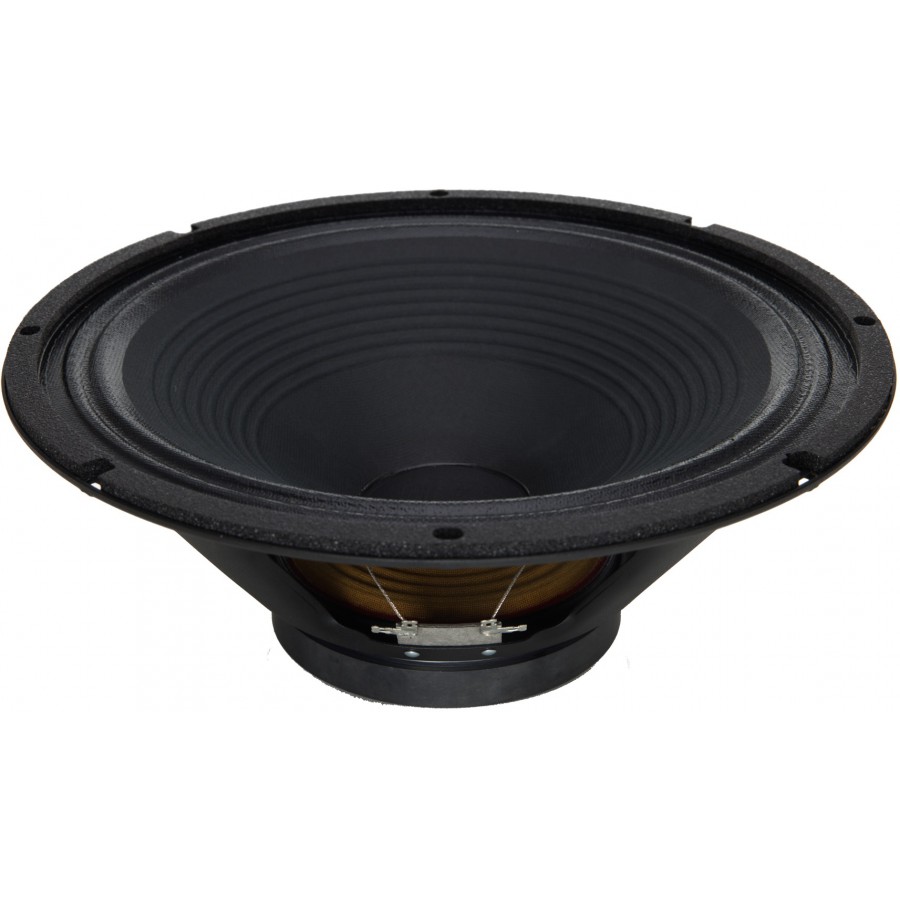

12" lightweight ceramic magnet guitar speaker.
Boasting a formidable 100W power rating, and a new-design, low-weight ceramic magnet structure, the Raven is engineered with the modern metal player in mind: ready to handle crushing high-gain lead lines and seismic low-end riff-work.
In stock
Warning: Last items in stock!
Availability date:
| VŠEOBECNÉ SPECIFIKACE | |
| Jmenovitý průměr | 12" / 305mm |
| Výkon | 100 W rms |
| Jmenovitá impedance | 8 Ω |
| Citlivost | 100 dB |

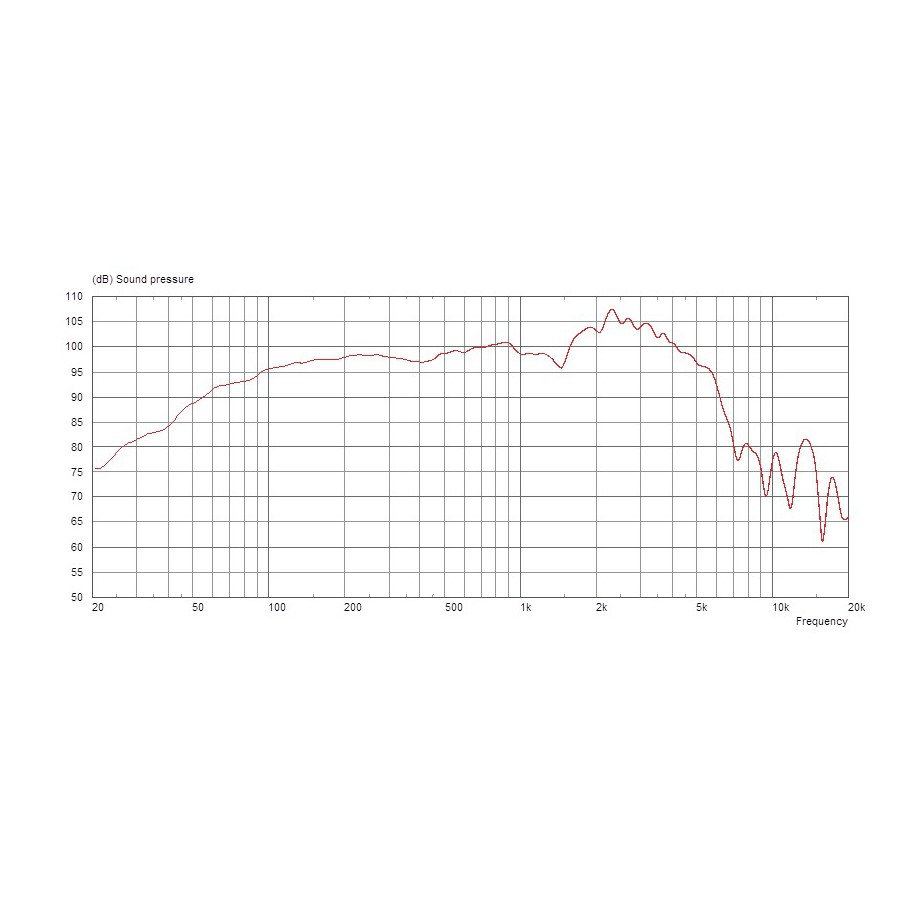

| Frekvenční rozsah | 70-5000 Hz |
| Typ magnetu | Keramický |
| Váha magnetu | 0.85 kg |
| Průměr kmitací cívky | 2" / 50 mm |
| Materiál | Lisovaná ocel |
| Materiál kmitací cívky | Vinutá měď |
| MONTÁŽNÍ INFORMACE | |
| Průměr otvoru | 11.1" / 283 mm |
| Průměr | 12.2" / 309 mm |
| Průměr konstrukce magnetu | 5.3” / 134 mm |
| Rozměry montážních otvorů | 0.31" / 7.9mm Ø |
| Montážní otvor PCD | 11.7" / 297 mm |
| Počet montážních otvorů | 8 |
| Celková hloubka | 4.85" / 123.3 mm |
| Weight in kg | 2.5 kg |
| Rezonanční frekvence ( kmitočet ) | 72 Hz |
| ORIGIN | |
| Country of manufacture | China |
Beyond the raw power lies a truly premium tone, delivering a detailed mid-range punch, brooding highs, and a firm, authoritative low end.
The Raven is defined by its ability to deliver the heaviest of modern metal tones, while remaining light as a feather. At the heart of this innovation is a reimagined ceramic magnet assembly. This new-design motor structure massively lowers the speaker’s overall weight—to just 2.5 kg (5.5 lb)—without compromising the huge magnetic forces required to power such a gargantuan tone machine.
